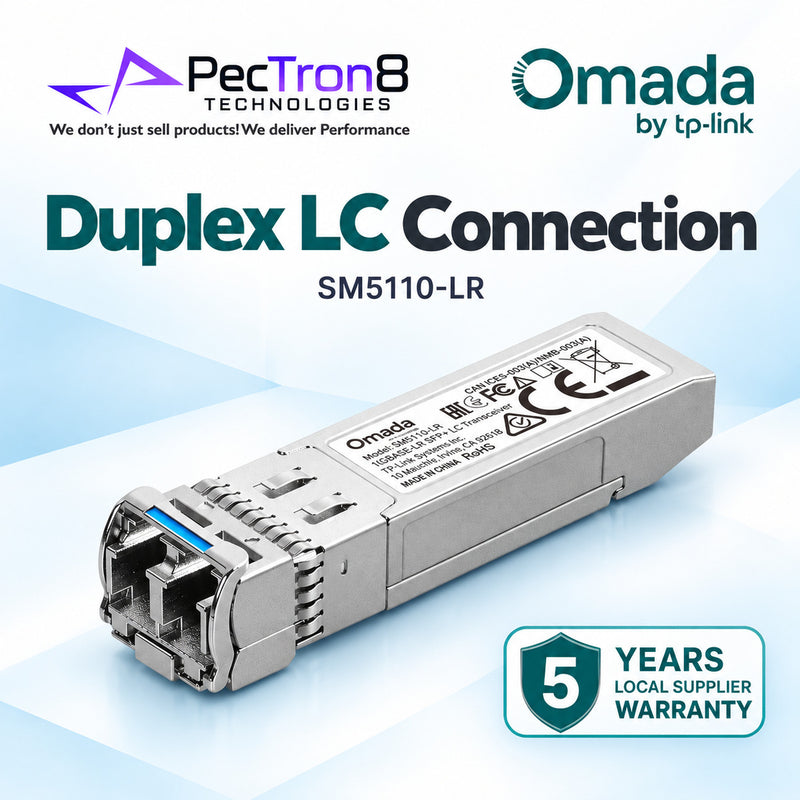

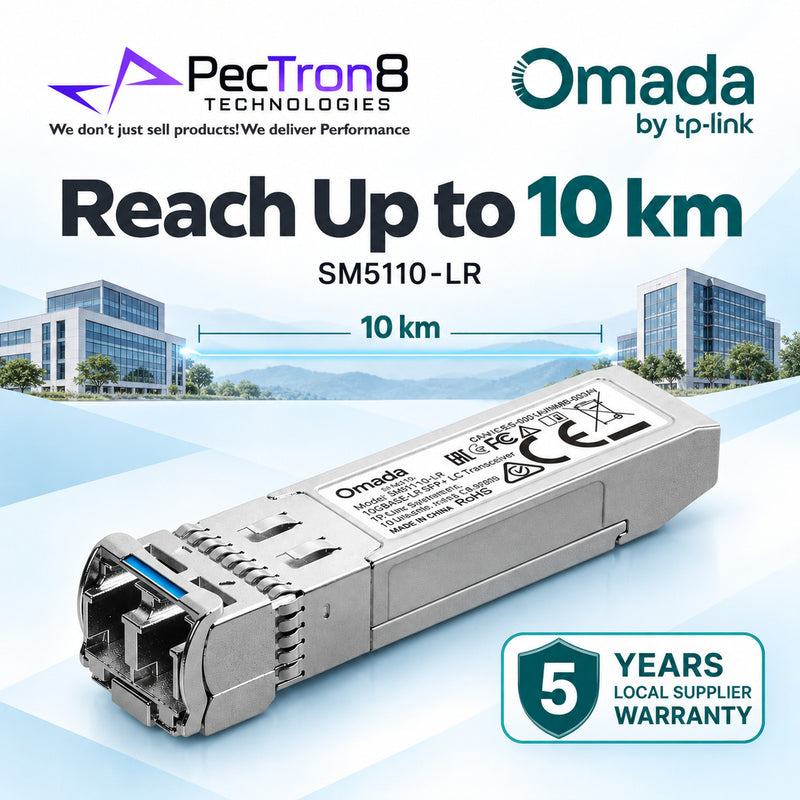

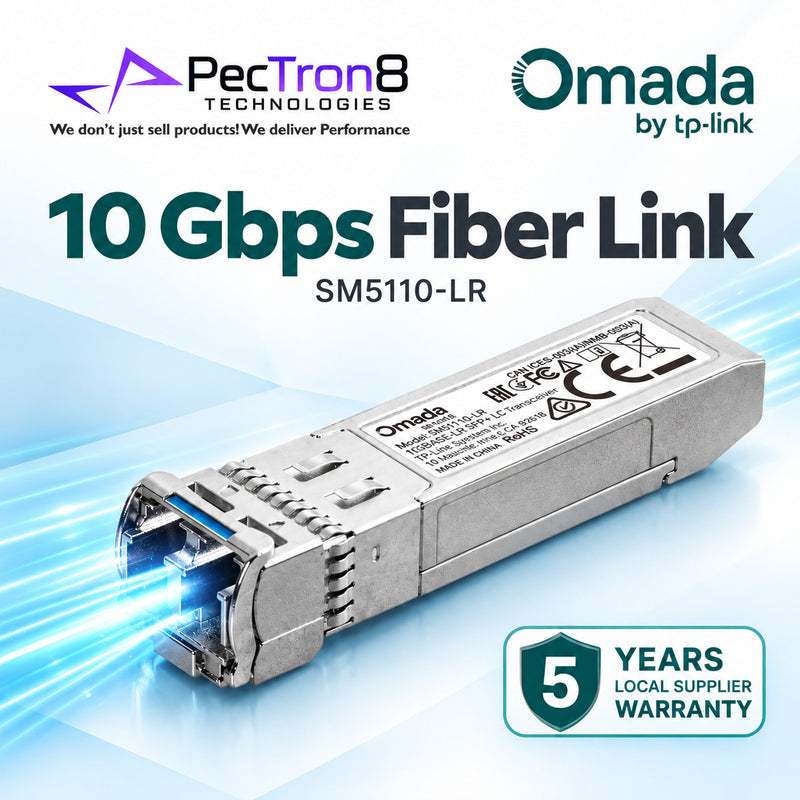

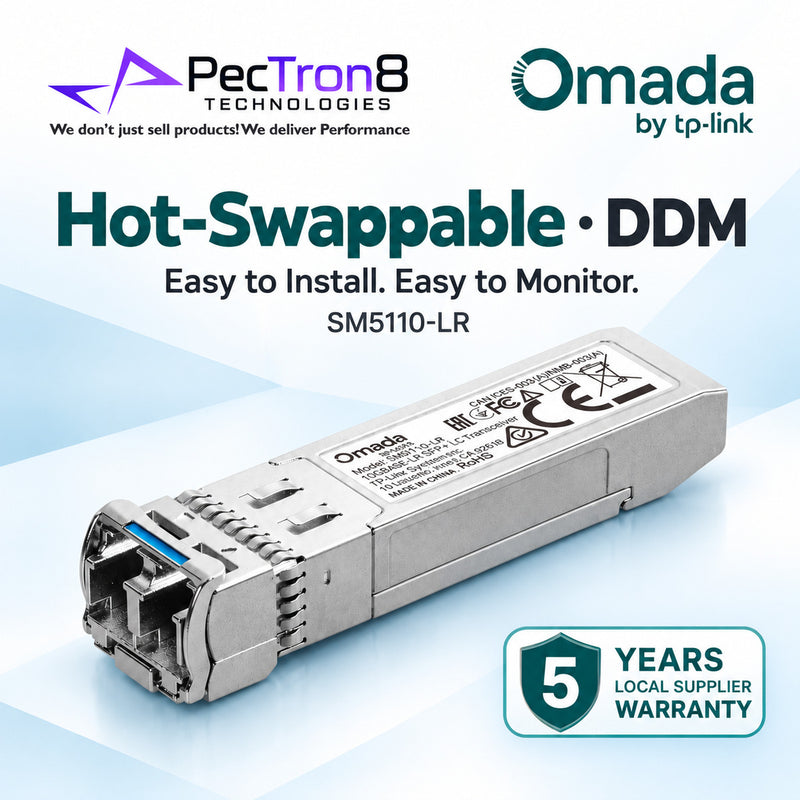

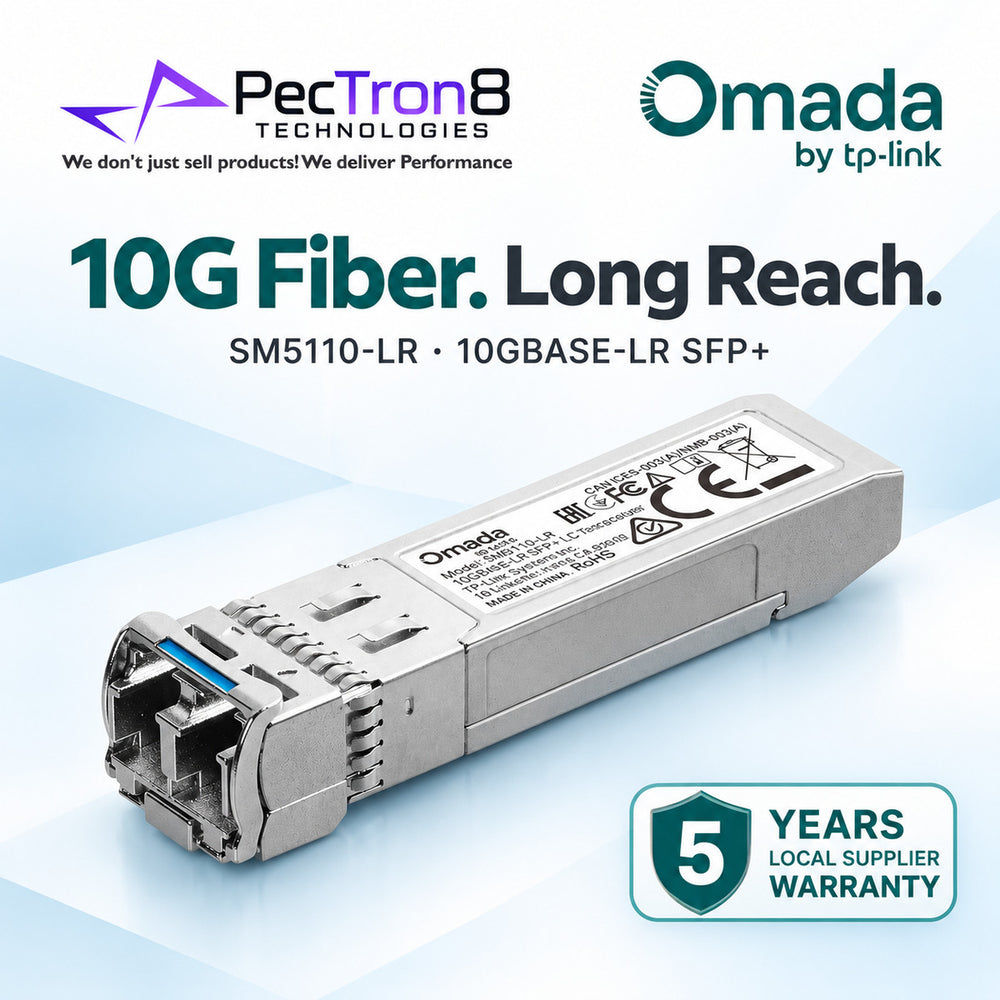

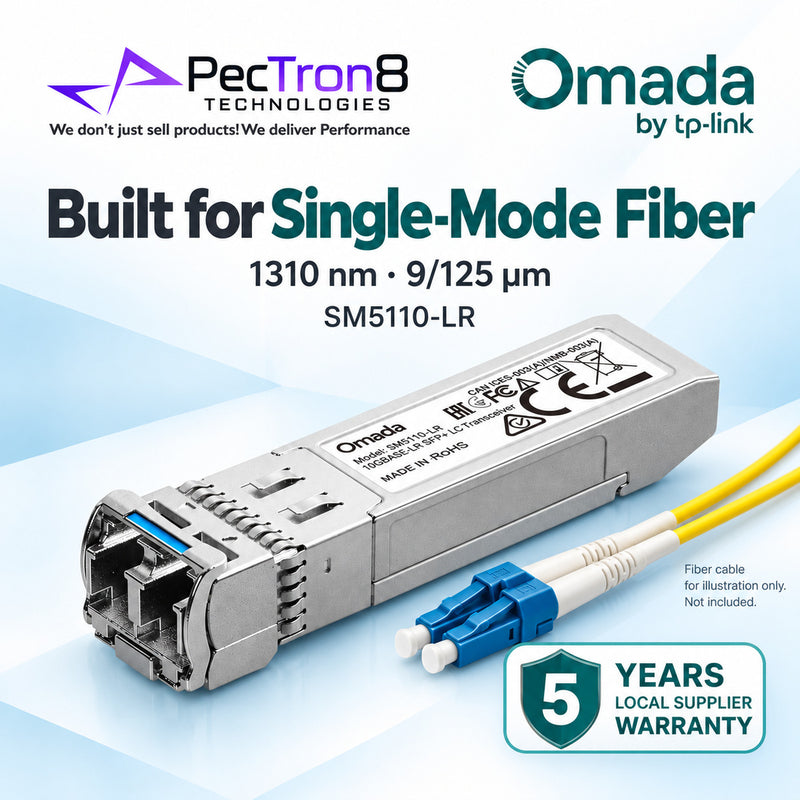

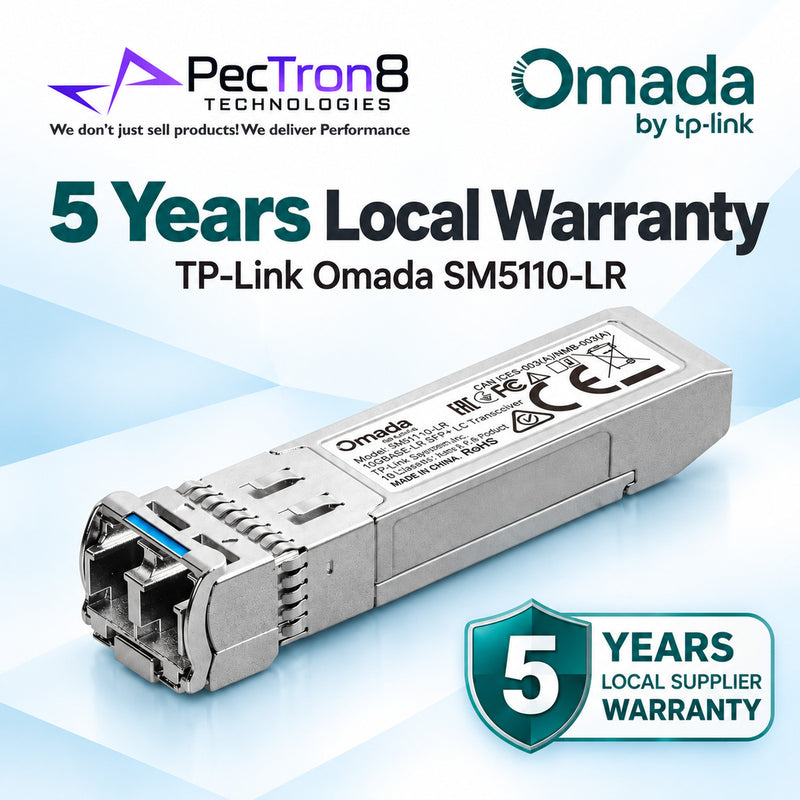

TP-Link Omada SM5110-LR 10GBase-LR SFP+ LC Transceiver – 10Gbps Single-Mode Fiber Module, 10km Reach
SKU: SM5110-LR
$119.00
$129.00
Free shipping
Estimated delivery: 3-5 business days
Description
The TP-Link Omada SM5110-LR is a 10 Gigabit SFP+ single-mode fiber transceiver designed for long-distance, high-speed fiber networking. It supports the 10GBase-LR standard and enables 10 Gbps data transmission over single-mode fiber (SMF) for distances up to 10 km using LC duplex connectors. The module is hot-pluggable and is ideal for enterprise networks, campus deployments, ISP infrastructure, and data centers.
Key Features
10 Gigabit Fiber Connectivity
- Supports 10 Gbps data transmission
- Complies with 10GBase-LR
- Full-duplex operation
- High-speed optical networking
Long-Range Single-Mode Transmission
- Supports single-mode fiber (SMF)
- Transmission distance up to 10 km
- Suitable for long-distance fiber links between buildings and network rooms
Optical Interface
- Duplex LC connector
- 1310 nm wavelength
- Laser transmitter
SFP+ Form Factor
- Standard SFP+ (Small Form-Factor Pluggable Plus) module
- Hot-swappable design
- Easy installation and replacement
- Compatible with SFP+ slots supporting 10GBase-LR optics
Enterprise Applications
Suitable for:
- Enterprise Networks
- Data Centers
- Campus Networks
- ISP Infrastructure
- Fiber Backbone Links
- Core Network Connections
- Aggregation Switches
- Server Connectivity
High Reliability
- Industrial-grade optical components
- Stable long-distance transmission
- Low power consumption
- Reliable optical performance
Technical Specifications
| Specification | Details |
|---|---|
| Model | SM5110-LR |
| Form Factor | SFP+ |
| Standard | 10GBase-LR |
| Data Rate | 10 Gbps |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Wavelength | 1310 nm |
| Maximum Distance | Up to 10 km |
| Hot Swappable | Yes |
| Duplex | Full Duplex |
Optical Specifications
- Transmit Wavelength: 1310 nm
- Fiber Type: Single-Mode Fiber (9/125 μm)
- Connector: LC Duplex
- Maximum Reach: 10 km
- Transmission Speed: 10 Gbps
Compatibility
Compatible with TP-Link Omada products featuring 10G SFP+ ports, including selected:
- Omada Managed Switches
- Aggregation Switches
- Enterprise Switches
It may also operate with other networking equipment that supports standard 10GBase-LR SFP+ transceivers, subject to device compatibility.
Installation Features
- Plug-and-play installation
- Hot-swappable
- Compact SFP+ module
- No software configuration required for standard operation
Physical Specifications
| Specification | Details |
|---|---|
| Product Type | Optical Transceiver |
| Form Factor | SFP+ |
| Connector | LC Duplex |
| Fiber Type | Single-Mode |
| Installation | SFP+ Slot |
Ideal For
- Enterprise LANs
- Data Centers
- Campus Fiber Networks
- Long-Distance Fiber Links
- Core Switch Connections
- Server Uplinks
- Backbone Infrastructure
- ISP Networks
Package Contents
- TP-Link Omada SM5110-LR 10GBase-LR SFP+ LC Transceiver
- Quick Installation Guide
