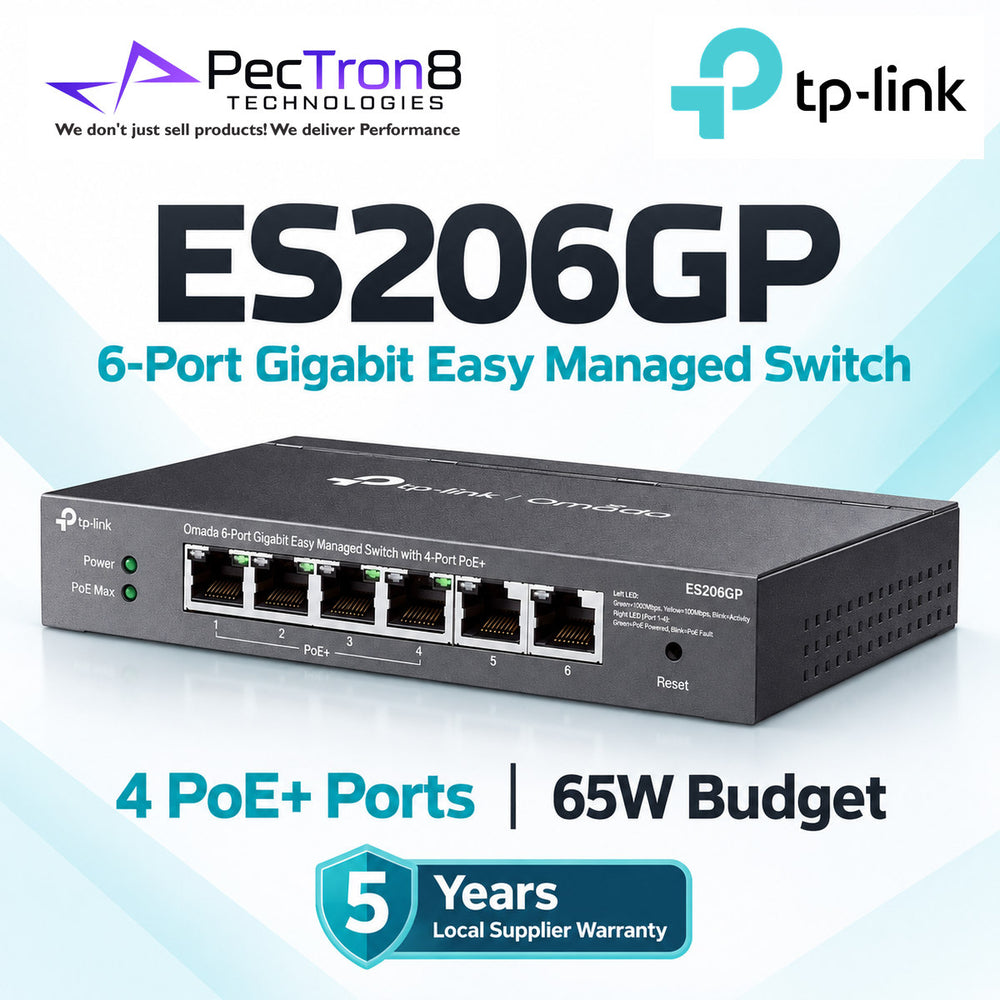

TP-Link Omada ES206GP 6-Port Gigabit Easy Managed Switch with 4-Port PoE+, 65W PoE Budget, Omada SDN Cloud Management
SKU: ES206GP
$95.00
$109.00
Free shipping
Estimated delivery: 3-5 business days
Description
The TP-Link Omada ES206GP is a compact 6-port Gigabit Easy Managed Switch designed for small business networks, IP surveillance, wireless access points, VoIP systems, and retail environments. It features 4 Gigabit PoE+ ports, a 65 W PoE power budget, centralized cloud management through the Omada SDN platform, and easy deployment with VLAN, QoS, IGMP Snooping, and loop prevention features.
Key Features

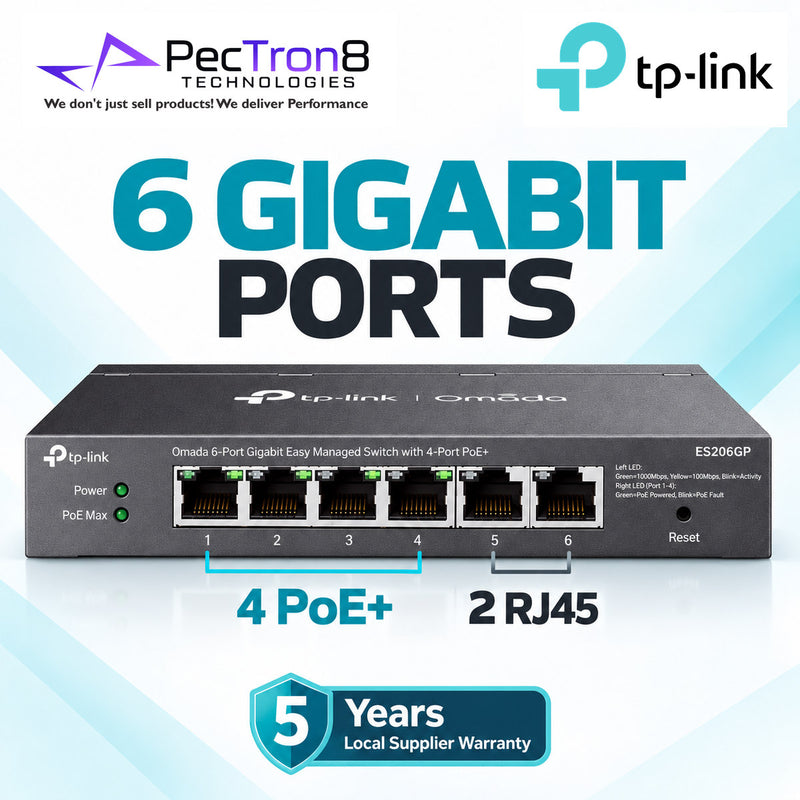

6 × Gigabit Ethernet Ports
- 6 × 10/100/1000 Mbps RJ45 ports
- Auto Negotiation
- Auto MDI/MDIX
- Non-blocking Gigabit switching

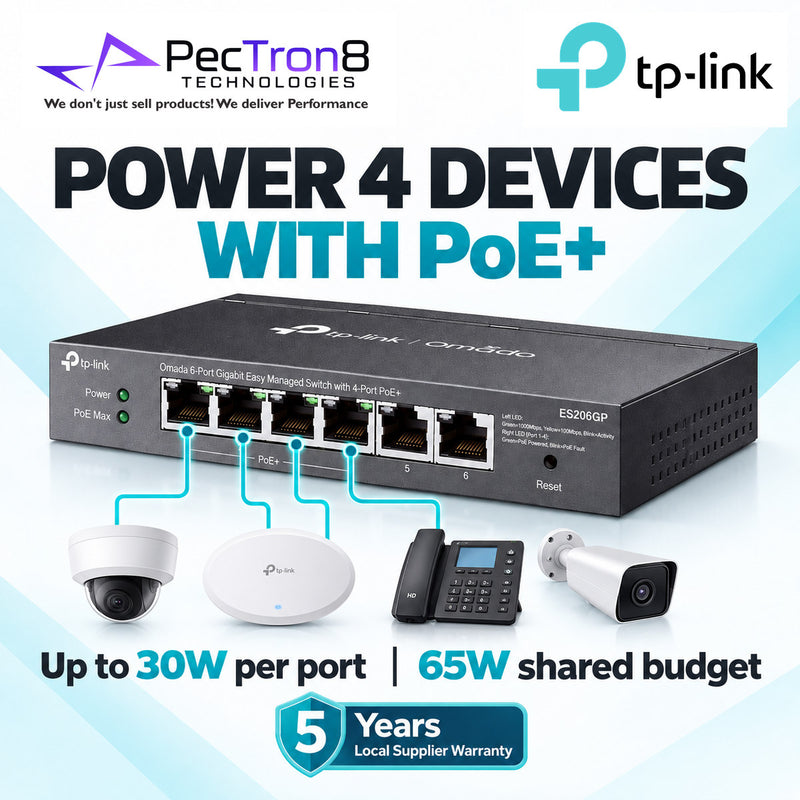

4 × PoE+ Ports
- IEEE 802.3af/at compliant
- 4 × Gigabit PoE+ ports
- Up to 30 W per PoE port
- 65 W total PoE budget
Suitable for powering:
- Omada Access Points
- IP Cameras
- VoIP Phones
- PoE Network Devices
Gigabit Switching Performance
- Switching Capacity: 12 Gbps
- Forwarding Rate: 8.93 Mpps
- Store-and-Forward Switching
- Wire-Speed Performance
Omada SDN Integration
Supports centralized management via:
- Omada Hardware Controller
- Omada Software Controller
- Omada Cloud-Based Controller
- Omada Cloud Portal
- Omada Mobile App
Features include:
- Zero-Touch Provisioning (controller dependent)
- Centralized Monitoring
- Remote Configuration
- Batch Management

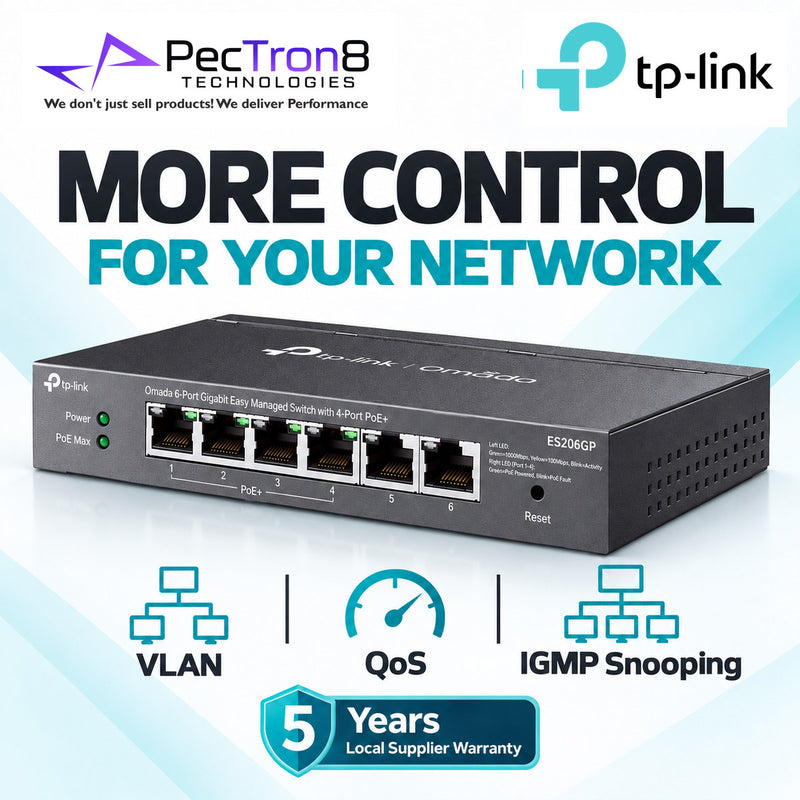

Easy Managed Features
Supports:
- Port-Based VLAN
- 802.1Q VLAN
- Voice VLAN
- QoS
- IGMP Snooping
- Loop Prevention
- Storm Control
- Port Isolation
- Port Mirroring
- Cable Diagnostics
PoE Management
- PoE Auto Recovery
- PoE Priority
- PoE Scheduling
- PoE Power Management
- Intelligent Power Allocation
Security Features
- 802.1X Authentication
- MAC Address Filtering
- Port Security
- DHCP Snooping
- Access Control
Technical Specifications
| Specification | Details |
|---|---|
| Model | ES206GP |
| Switch Type | Easy Managed |
| Total Ports | 6 × Gigabit RJ45 |
| PoE Ports | 4 × PoE+ |
| PoE Standard | IEEE 802.3af/at |
| Maximum PoE per Port | 30 W |
| Total PoE Budget | 65 W |
| Switching Capacity | 12 Gbps |
| Forwarding Rate | 8.93 Mpps |
| Management | Omada SDN / Web GUI |
Network Features
- IEEE 802.3 / 802.3u / 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- Flow Control (802.3x)
- Jumbo Frames
- IGMP Snooping
- QoS
- VLAN
- Port Isolation

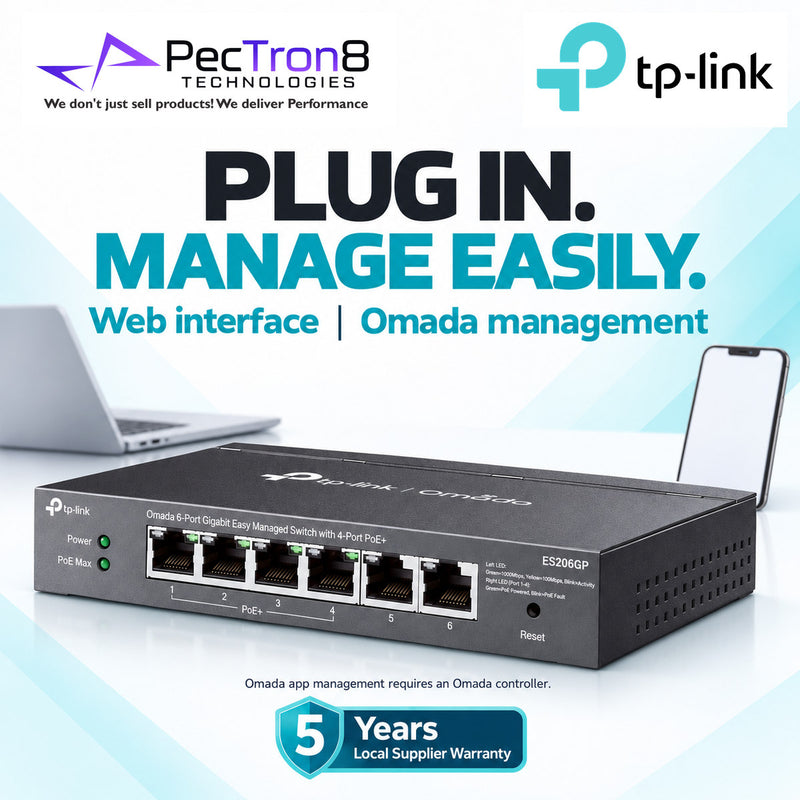

Smart Management
- Omada SDN
- Web Management
- Omada App
- Cloud Management
- Firmware Upgrade
- Traffic Statistics
- Port Monitoring

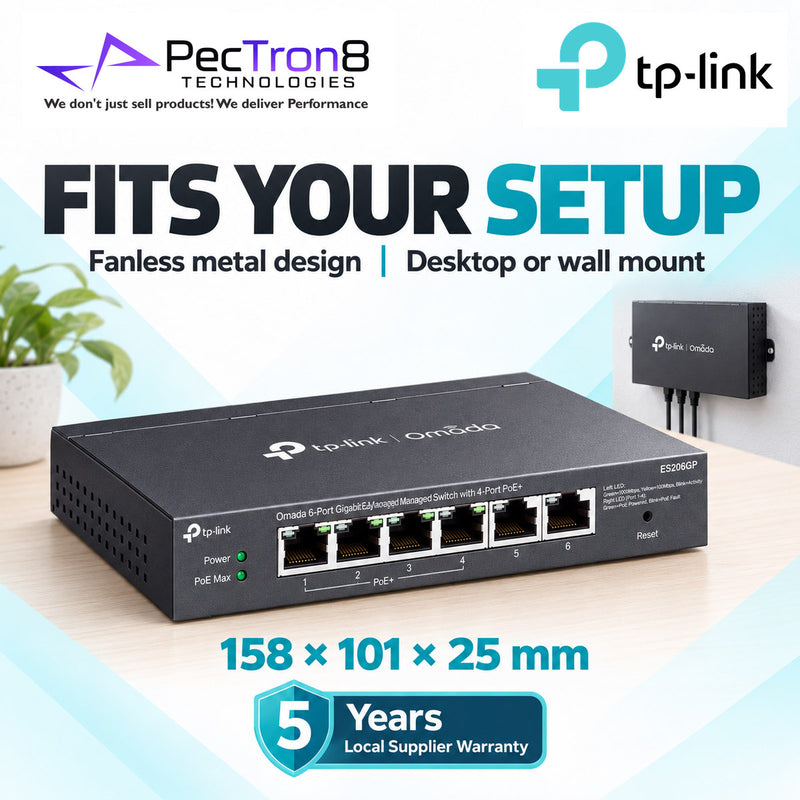

Physical Specifications
| Specification | Details |
|---|---|
| Housing | Metal |
| Installation | Desktop / Wall Mount |
| Cooling | Fanless Silent Design |
| Color | Black |
Ideal For
- Small Offices
- Retail Stores
- Restaurants
- Hotels
- Surveillance Systems
- Wi-Fi Access Points
- VoIP Networks
- Smart Buildings
- Branch Offices
Package Contents
- TP-Link Omada ES206GP Easy Managed Switch
- Power Adapter
- Quick Installation Guide
- Rubber Feet
