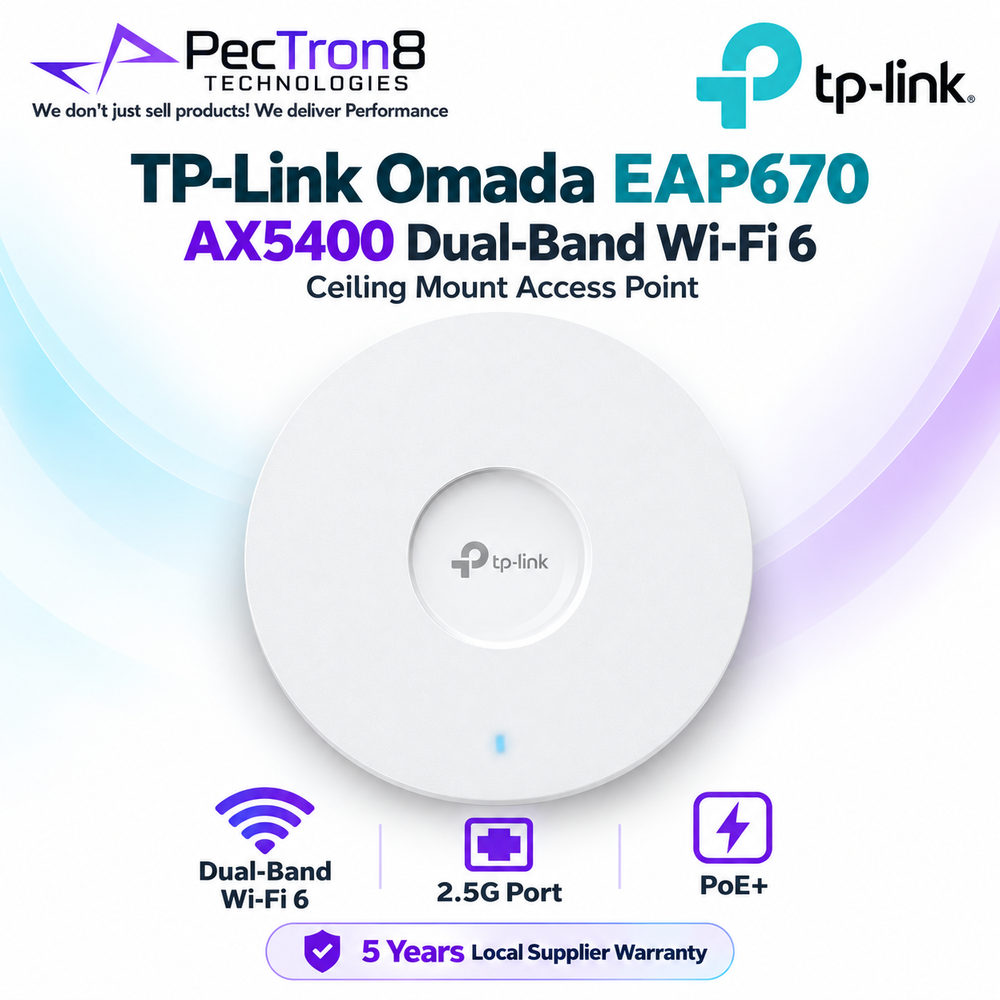

TP-Link Omada EAP670 AX5400 Wi-Fi 6 Ceiling Mount Access Point – 2.5GbE, PoE+, Omada SDN, WPA3 Enterprise
SKU: EAP670 AX5400
$195.00
$205.00
Free shipping
Estimated delivery: 3-5 business days
Description
The TP-Link Omada EAP670 is a high-performance AX5400 Dual-Band Wi-Fi 6 Ceiling Mount Access Point designed for enterprise, hospitality, education, retail, and office deployments. Featuring Wi-Fi 6 (802.11ax), 160 MHz channels, OFDMA, MU-MIMO, a 2.5 Gigabit Ethernet uplink, PoE+ support, and seamless integration with the Omada SDN platform, it delivers fast, reliable wireless connectivity for high-density environments.
Key Features
AX5400 Dual-Band Wi-Fi 6
- Combined wireless speeds up to 5,378 Mbps
- Wi-Fi 6 (IEEE 802.11ax)
- High-capacity enterprise wireless
- Optimized for dense client environments

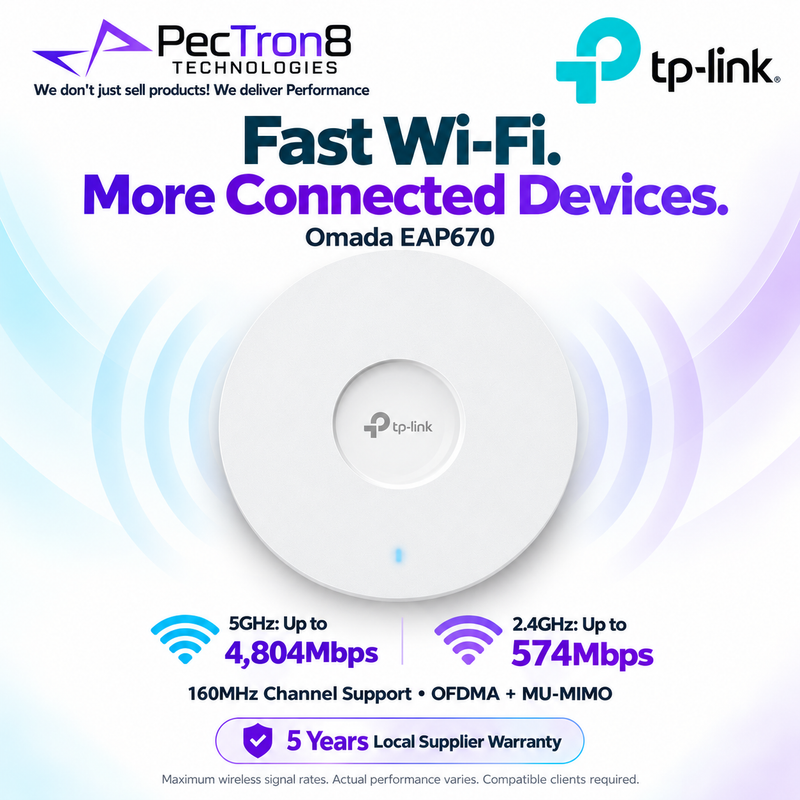

Dual-Band Wireless
- 5 GHz: Up to 4,804 Mbps
- 2.4 GHz: Up to 574 Mbps
Combined wireless throughput up to 5,378 Mbps (AX5400).
Advanced Wi-Fi 6 Technologies
Supports:
- OFDMA
- MU-MIMO
- Beamforming
- BSS Coloring
- 1024-QAM
- Target Wake Time (TWT)
- Airtime Fairness
- Band Steering
- Load Balancing

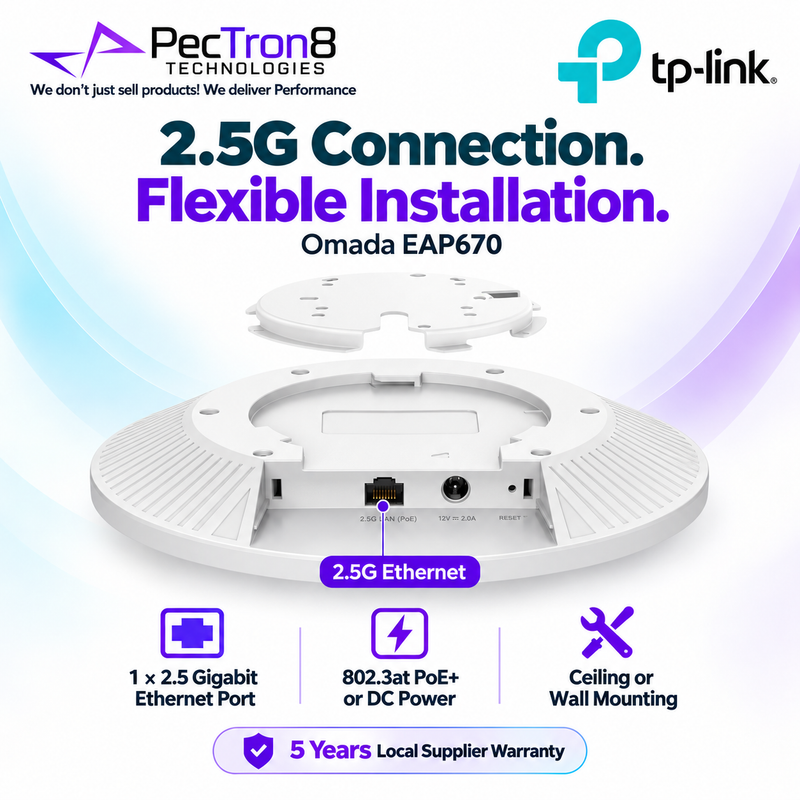

2.5 Gigabit Ethernet
- 1 × 2.5GbE RJ45 Port
- Supports multi-gig uplinks
- Eliminates wired bottlenecks for Wi-Fi 6 performance
Power Options
- 802.3at PoE+
- 12V DC Power Adapter (adapter availability may vary by region/package)

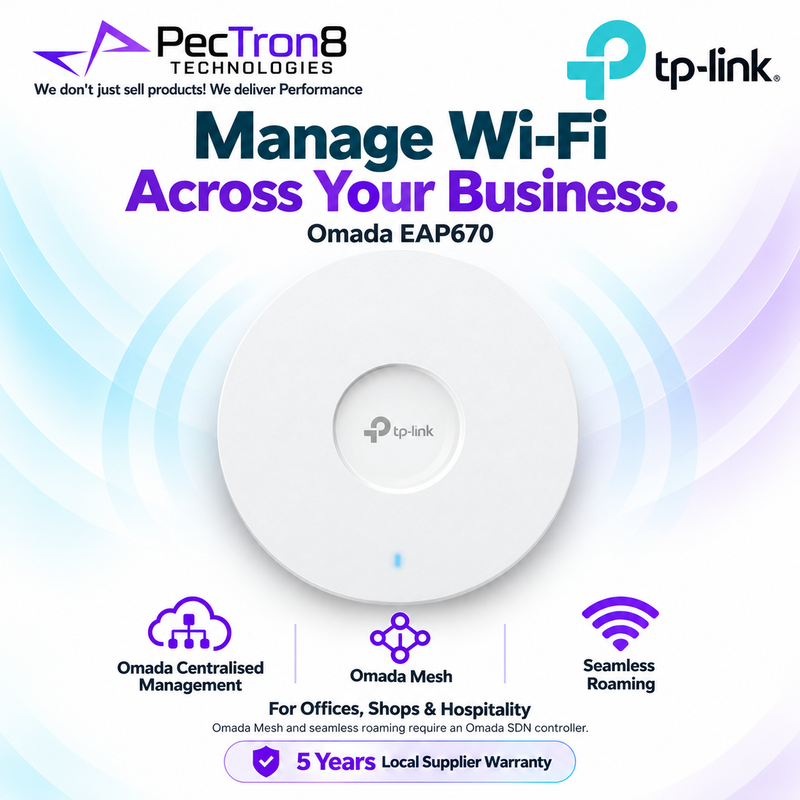

Omada SDN Integration
Supports centralized management through:
- Omada Hardware Controller
- Omada Software Controller
- Omada Cloud-Based Controller
- Omada Cloud Management
- Omada Mobile App
Seamless Roaming
Supports enterprise roaming technologies including:
- 802.11k
- 802.11v
- Fast Roaming (802.11r)
Enterprise Security
- WPA3 Enterprise
- WPA2 Enterprise
- Captive Portal
- Guest Network
- VLAN Support
- Access Control
- Rogue AP Detection
- Client Isolation
Flexible Deployment
- Ceiling Mount
- Wall Mount
- Hotels
- Schools
- Offices
- Retail Stores
- Hospitals
- Warehouses
Technical Specifications
| Specification | Details |
|---|---|
| Model | EAP670 |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi Class | AX5400 |
| Bands | Dual-Band |
| 5 GHz Speed | Up to 4,804 Mbps |
| 2.4 GHz Speed | Up to 574 Mbps |
| Combined Speed | Up to 5,378 Mbps |
| Ethernet Port | 1 × 2.5GbE RJ45 |
| Power | 802.3at PoE+ / 12V DC |
| Management | Omada SDN |
| Mounting | Ceiling / Wall |
| Security | WPA3 Enterprise |
Wireless Technologies
- Wi-Fi 6
- OFDMA
- MU-MIMO
- Beamforming
- 160 MHz Channel Width
- 1024-QAM
- BSS Coloring
- Target Wake Time (TWT)
- Airtime Fairness
- Band Steering
- Load Balancing
Network Features
- Omada SDN
- Cloud Management
- Centralized Monitoring
- Seamless Roaming
- Captive Portal
- VLAN
- Guest Network
- Mesh Support*
- QoS
- Scheduler
Security Features
- WPA3 Enterprise
- WPA2 Enterprise
- Captive Portal Authentication
- Rogue AP Detection
- Client Isolation
- Access Control
- VLAN Segmentation
Physical Specifications
| Specification | Details |
|---|---|
| Color | White |
| Form Factor | Ceiling Mount Access Point |
| Mounting | Ceiling / Wall |
| Port | 1 × 2.5GbE RJ45 |
| Power | PoE+ / DC Input |
Ideal For
- Enterprise Offices
- Hotels & Hospitality
- Schools & Universities
- Retail Stores
- Restaurants & Cafés
- Healthcare Facilities
- Warehouses
- Large Homes
- Conference Rooms
- High-Density Wi-Fi Deployments
Package Contents
- TP-Link Omada EAP670 Access Point
- Ceiling/Wall Mounting Kit
- Installation Guide
