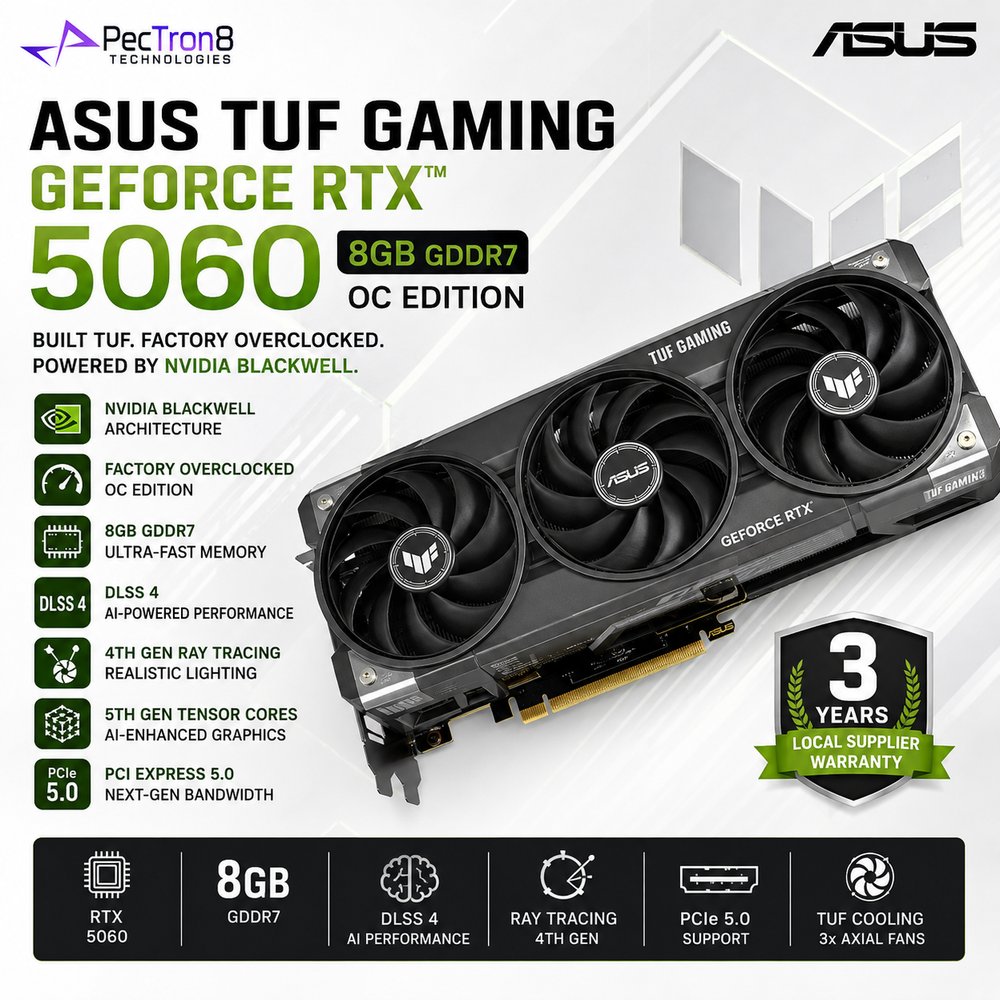

ASUS TUF Gaming GeForce RTX 5060 8GB GDDR7 OC Edition Graphics Card | NVIDIA Blackwell | DLSS 4 | PCIe 5.0 | Aura Sync
Description
The ASUS TUF Gaming GeForce RTX™ 5060 8GB GDDR7 OC Edition is a factory-overclocked graphics card built on the NVIDIA Blackwell architecture. Designed with TUF Gaming's military-inspired durability, advanced cooling, and ARGB lighting, it features 3,840 CUDA cores, 8GB GDDR7 memory, a robust 3.1-slot cooling solution, and PCIe 5.0 support. The exact model is TUF-RTX5060-O8G-GAMING.

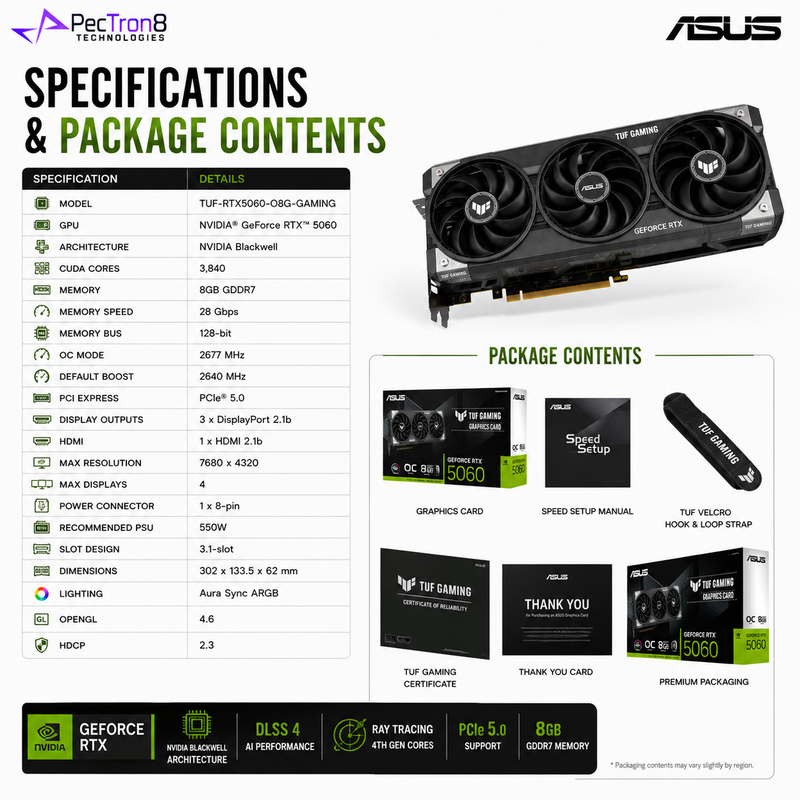

| Specification | Details |
|---|---|
| Model | TUF-RTX5060-O8G-GAMING |
| GPU | NVIDIA GeForce RTX™ 5060 |
| Architecture | NVIDIA Blackwell |
| AI Performance | 614 TOPS |
| CUDA Cores | 3,840 |
| Video Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| PCI Express | PCIe 5.0 |
| OC Mode Clock | 2677 MHz |
| Default Boost Clock | 2640 MHz |
| OpenGL | 4.6 |
| Maximum Resolution | 7680 × 4320 |
| Display Outputs | 3 × DisplayPort 2.1b |
| HDMI | 1 × HDMI 2.1b |
| HDCP | 2.3 |
| Maximum Displays | 4 |
| Power Connector | 1 × 8-pin PCIe |
| Recommended PSU | 550W |
| Slot Design | 3.1-slot |
| Dimensions | 302 × 133.5 × 62 mm |
| Lighting | ASUS Aura Sync ARGB |

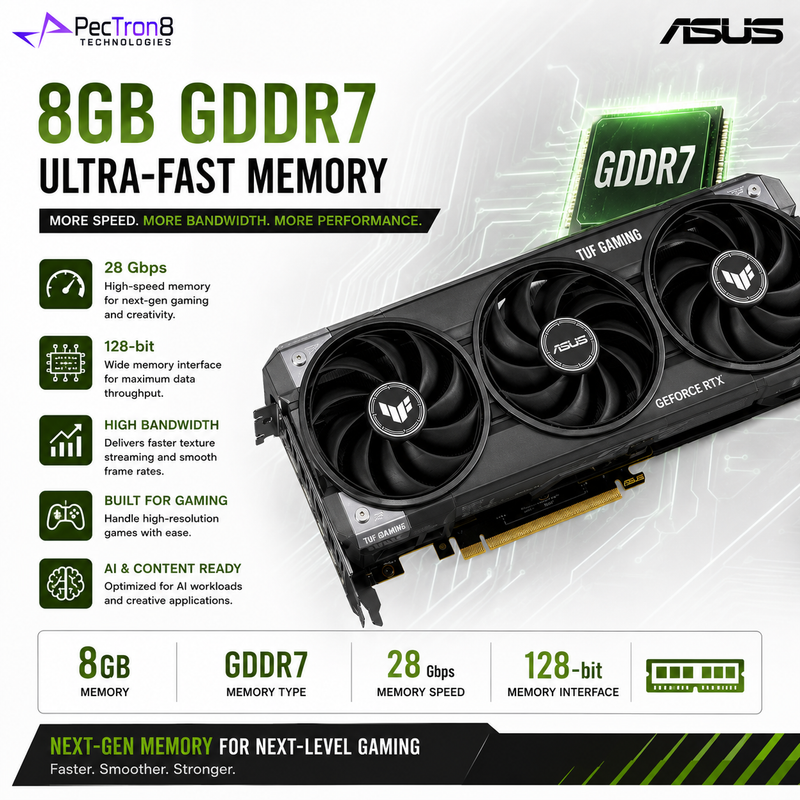

The GPU features 8GB of GDDR7 memory running at 28 Gbps on a 128-bit memory bus. It reaches 2677 MHz in OC Mode and 2640 MHz in Default Mode, configurable through ASUS GPU Tweak III.

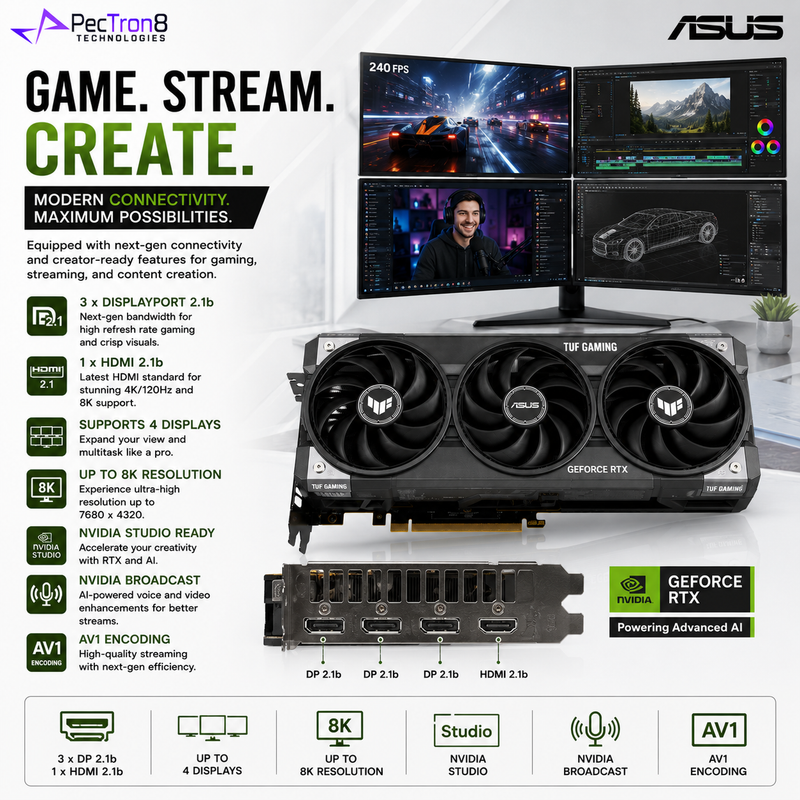

For display connectivity, the card provides:
- 3 × DisplayPort 2.1b
- 1 × HDMI 2.1b
- Supports up to 4 displays
- Maximum digital resolution of 7680 × 4320 (8K).
Physically, the card measures 302 × 133.5 × 62 mm, occupies a 3.1-slot form factor, uses a single 8-pin PCIe power connector, and ASUS recommends a 550W power supply. It also supports Aura Sync ARGB lighting for synchronized RGB effects.
Package Contents
- ASUS TUF Gaming GeForce RTX™ 5060 8GB GDDR7 OC Edition
- Speed Setup Manual
- TUF Velcro Hook & Loop Strap
- TUF Gaming Certificate
- Thank You Card Supported Software
- ASUS GPU Tweak III
- MuseTree
- NVIDIA GeForce Game Ready Driver
- NVIDIA Studio Driver
Key Selling Features
- NVIDIA Blackwell Architecture
- Factory Overclocked (2677 MHz OC Mode)
- 8GB GDDR7 @ 28 Gbps
- 3,840 CUDA Cores
- DLSS 4 Support
- 4th Gen Ray Tracing
- 5th Gen Tensor Cores
- PCI Express 5.0

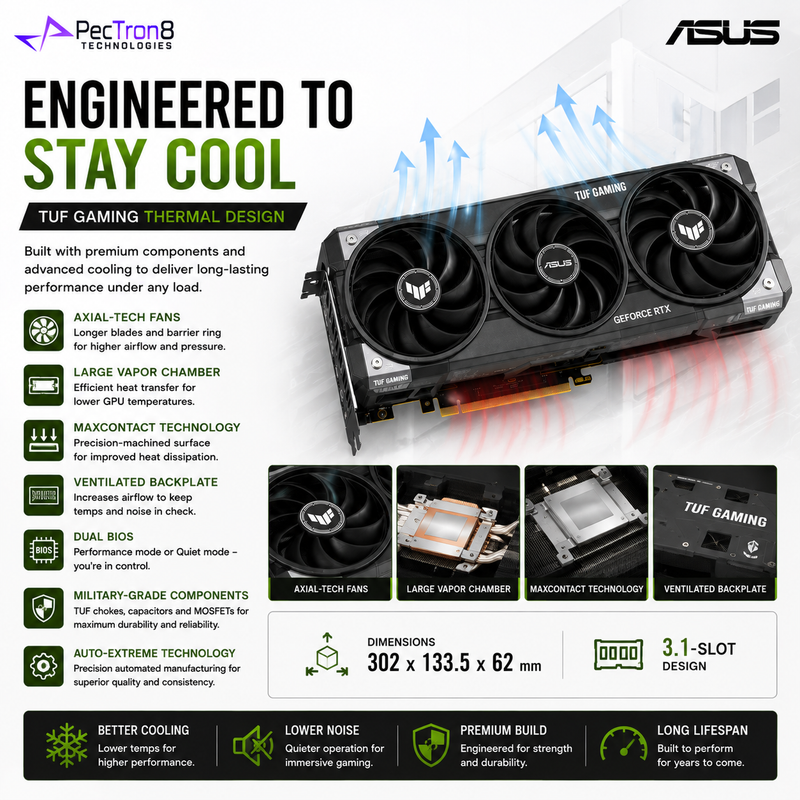

- TUF Gaming 3.1-slot Cooling Design
- Aura Sync ARGB Lighting
- Dual BIOS
- Military-Grade Components
- Auto-Extreme Manufacturing
- 3 × DisplayPort 2.1b + 1 × HDMI 2.1b
- Up to 8K Resolution
- NVIDIA Studio Ready
