ASUS TUF Gaming GeForce RTX 5060 8GB GDDR7 OC Edition Graphics Card | NVIDIA Blackwell | DLSS 4 | PCIe 5.0
Description

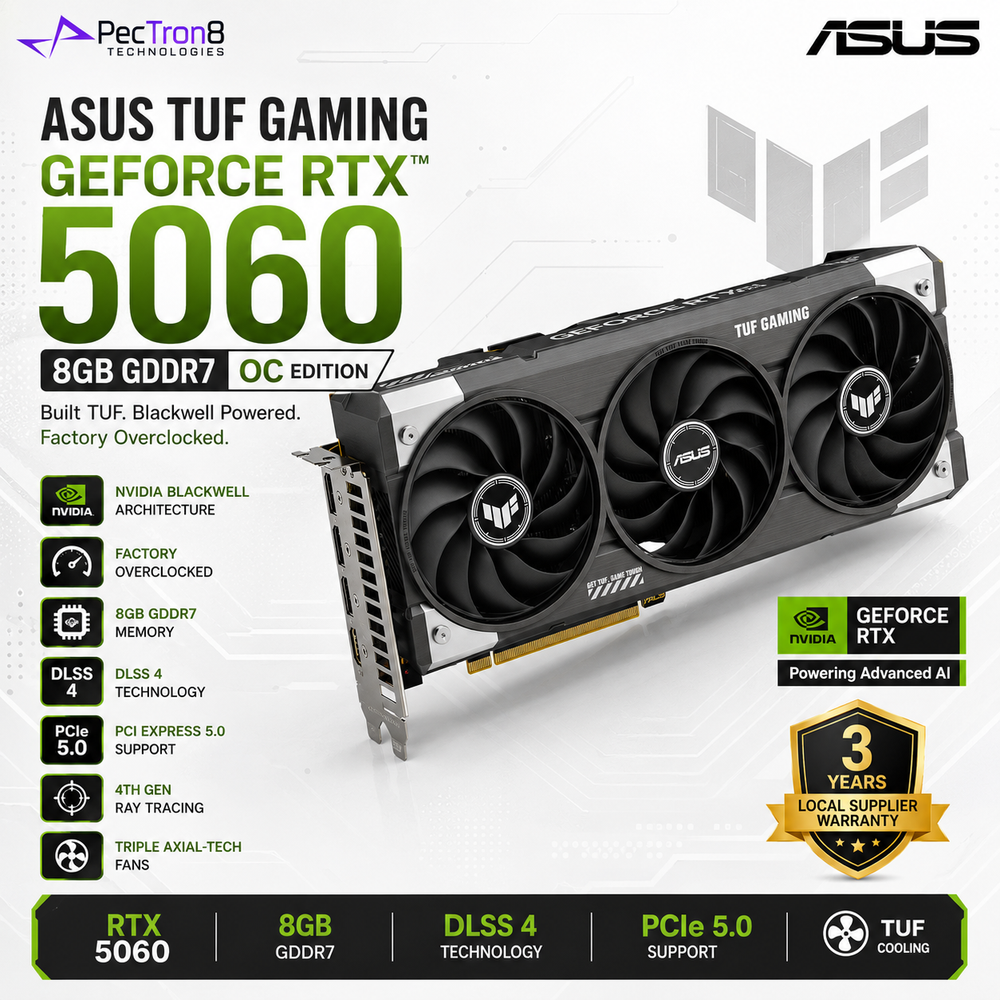

The ASUS TUF Gaming GeForce RTX™ 5060 8GB GDDR7 OC Edition is a factory-overclocked RTX 5060 based on NVIDIA Blackwell architecture, with 3,840 CUDA cores, 8GB GDDR7, PCIe 5.0, and a robust 3.1-slot TUF Gaming cooling design. The exact model is TUF-RTX5060-O8G-GAMING.
| Specification | Details |
|---|---|
| Model | TUF-RTX5060-O8G-GAMING |
| GPU | NVIDIA GeForce RTX™ 5060 |
| Architecture | NVIDIA Blackwell |
| AI Performance | 614 TOPS |
| CUDA Cores | 3,840 |
| Video Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| PCI Express | PCIe 5.0 |
| OC Mode Clock | 2677 MHz |
| Default Boost Clock | 2640 MHz |
| OpenGL | 4.6 |
| Maximum Resolution | 7680 × 4320 |
| DisplayPort | 3 × DisplayPort 2.1b |
| HDMI | 1 × HDMI 2.1b |
| HDCP | 2.3 |
| Maximum Displays | 4 |
| Recommended PSU | 550W |
| Power Connector | 1 × 8-pin |
| Slot Design | 3.1-slot |
| Dimensions | 302 × 133.5 × 62 mm |
ASUS specifies the card at 2677 MHz in OC mode and 2640 MHz default boost, with 8GB GDDR7 running at 28 Gbps on a 128-bit interface.
For display connectivity, it offers 3 × DisplayPort 2.1b + 1 × HDMI 2.1b, supports up to four displays, and reaches a maximum digital resolution of 7680 × 4320 (8K).
The card measures 302 × 133.5 × 62 mm, occupies 3.1 slots, uses 1 × 8-pin power connector, and ASUS recommends a 550W PSU. It also supports Aura Sync ARGB lighting.
Key Selling Features
- NVIDIA Blackwell Architecture
- Factory Overclocked OC Edition
- 8GB GDDR7
- 28 Gbps memory speed
- 3,840 CUDA cores
- 614 AI TOPS
- DLSS 4
- Multi Frame Generation
- 4th Gen Ray Tracing Cores
- 5th Gen Tensor Cores
- NVIDIA Reflex 2
- PCI Express 5.0
- TUF Gaming triple-fan cooling
- 3.1-slot construction
- Aura Sync ARGB
- 3 × DisplayPort 2.1b
- 1 × HDMI 2.1b
- Up to 4 displays
- Up to 8K output
Package Contents
ASUS officially lists:
- ASUS TUF Gaming GeForce RTX™ 5060 8GB GDDR7 OC Edition
- Speed Setup Manual
- TUF Velcro Hook & Loop
- TUF Gaming Certificate
- Thank You Card
Supported Software
- ASUS GPU Tweak III
- MuseTree
- GeForce Game Ready Driver
- NVIDIA Studio Driver
