ASUS PRIME GeForce RTX 5060 Ti 16GB GDDR7 OC Edition Graphics Card | PCIe 5.0 | DLSS 4 | HDMI 2.1b | DisplayPort 2.1b
Description
The ASUS PRIME GeForce RTX™ 5060 Ti 16GB GDDR7 OC Edition is a factory-overclocked graphics card based on the NVIDIA Blackwell architecture, designed for high-refresh-rate 1080p and 1440p gaming, AI-enhanced rendering, ray tracing, and creative workloads. It combines 16GB of ultra-fast GDDR7 memory, PCIe 5.0, and ASUS PRIME's efficient 2.5-slot cooling solution in a compact design suitable for a wide range of PC builds.

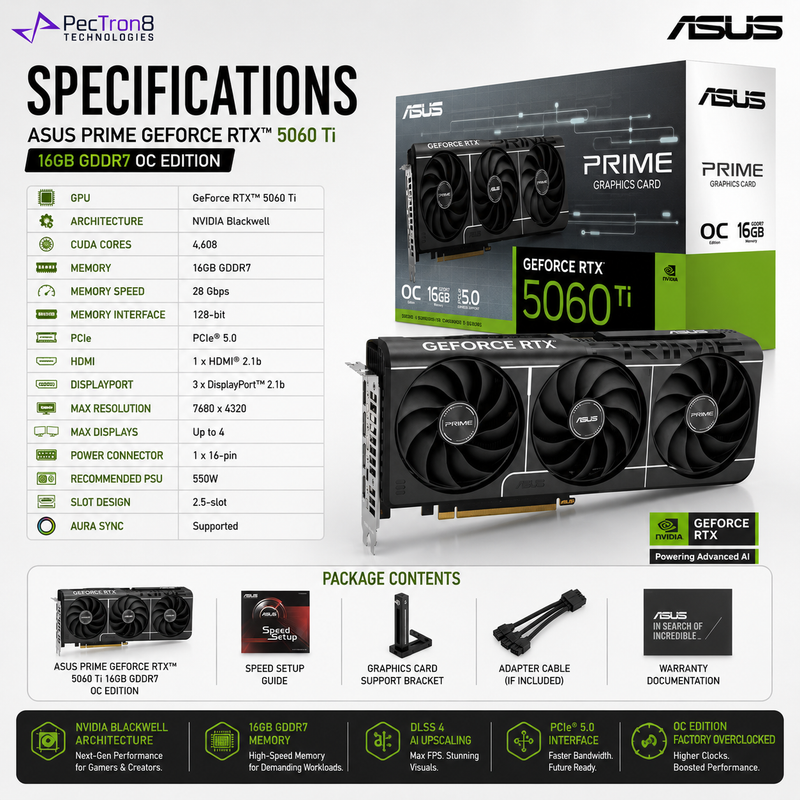

Key Specifications
| Specification | Details |
|---|---|
| Model | PRIME-RTX5060TI-O16G |
| GPU | NVIDIA GeForce RTX™ 5060 Ti |
| Architecture | NVIDIA Blackwell |
| AI Performance | Up to 759 AI TOPS |
| CUDA Cores | 4,608 |
| Memory | 16GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| PCI Express | PCIe 5.0 x16 |
| OC Mode Boost Clock | Up to 2662 MHz |
| Default Boost Clock | Up to 2632 MHz |
| OpenGL | 4.6 |
| Maximum Resolution | 7680 × 4320 (8K) |
| HDMI | 1 × HDMI 2.1b |
| DisplayPort | 3 × DisplayPort 2.1b |
| HDCP Support | 2.3 |
| Maximum Displays | 4 |
| Power Connector | 1 × 16-pin |
| Recommended PSU | 550W |
| Slot Design | 2.5-slot |
| Dimensions | Approx. 304 × 126 × 50 mm |
| Aura Sync | Supported |

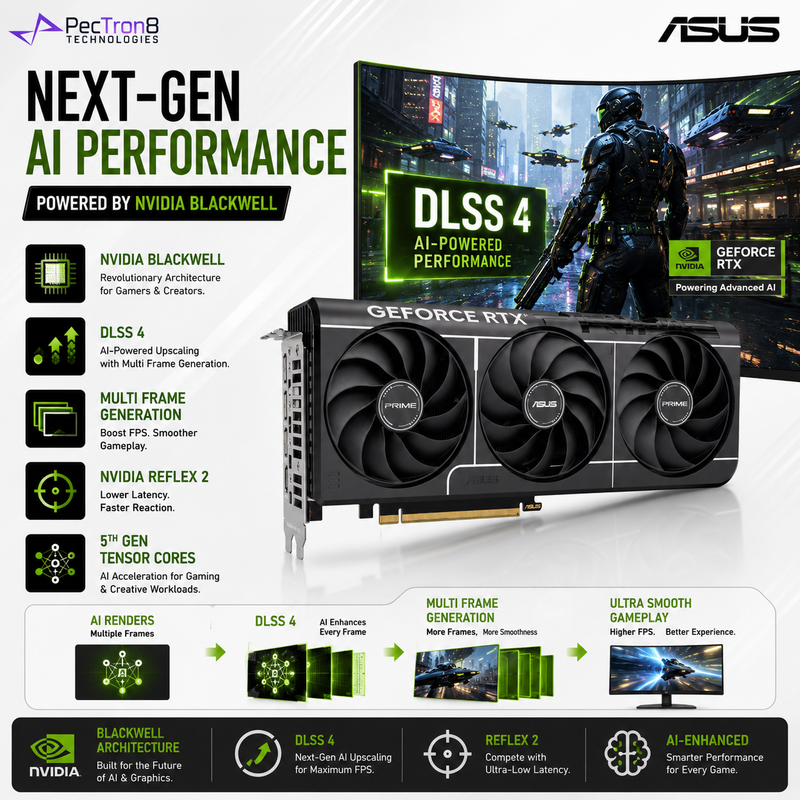

NVIDIA Blackwell Features
Powered by the latest NVIDIA Blackwell architecture, the RTX 5060 Ti delivers exceptional gaming, AI acceleration, and creator performance.
Highlights include:
- NVIDIA Blackwell Architecture
- DLSS 4 with Multi Frame Generation
- 4th Generation Ray Tracing Cores
- 5th Generation Tensor Cores
- NVIDIA Reflex 2
- NVIDIA Studio
- AV1 Hardware Encoder & Decoder
- DirectX 12 Ultimate
- Vulkan & OpenGL 4.6 support

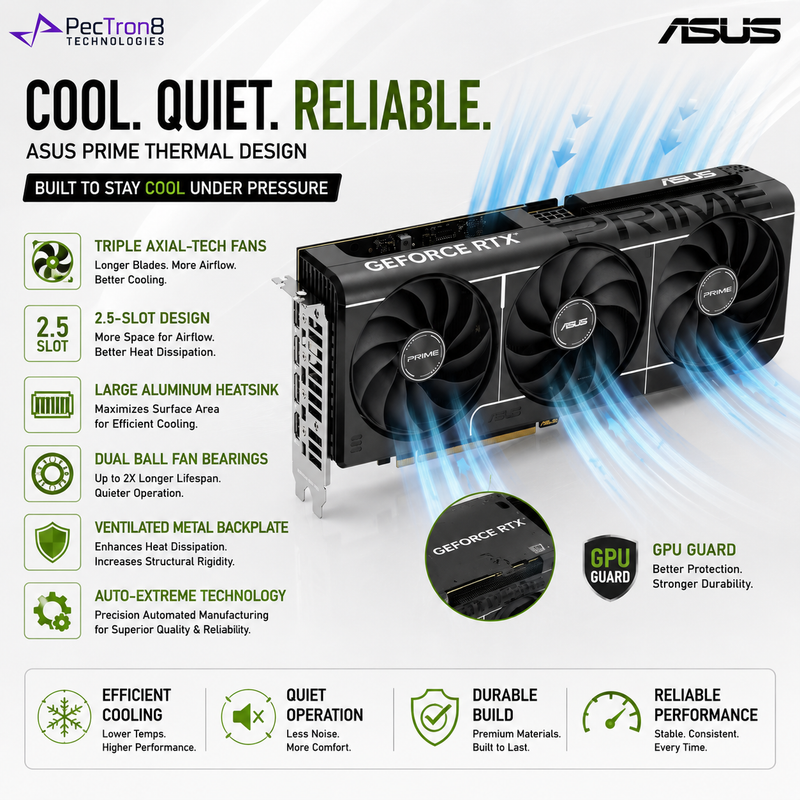

ASUS PRIME Cooling Design
The PRIME OC Edition features ASUS's optimized cooling system designed for efficient airflow and quiet operation.
Cooling features include:
- Triple Axial-tech Fans
- 2.5-slot Cooling Design
- Large Aluminum Heatsink
- Dual Ball Fan Bearings
- Ventilated Metal Backplate
- Auto-Extreme Manufacturing
- GPU Guard Technology
Performance Highlights
- 16GB GDDR7 Memory
- 28 Gbps Memory Speed
- 128-bit Memory Bus
- Factory Overclocked
- PCIe 5.0 Interface
- AI-Accelerated Graphics
- Ultra-smooth 1440p Gaming
- High-Speed Creative Workflows

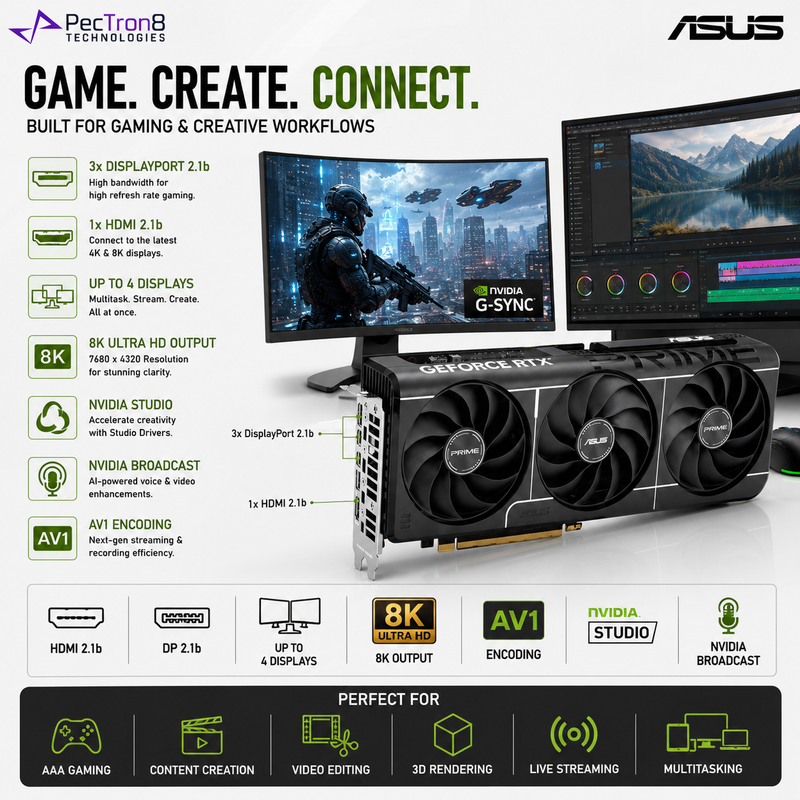

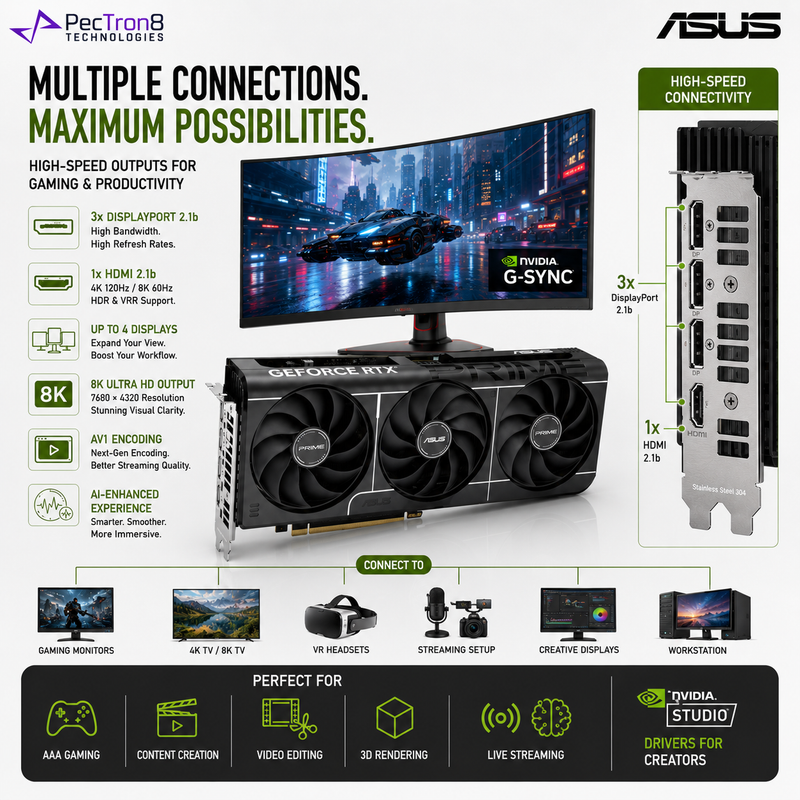

Display Connectivity
The card supports modern high-resolution displays.
Ports include:
- 3 × DisplayPort 2.1b
- 1 × HDMI 2.1b
- Supports up to 4 Displays
- Maximum Digital Resolution: 7680 × 4320 (8K)
AI & Creator Features
Ideal for gaming, streaming, and professional creative applications.
Supports:
- NVIDIA Studio Drivers
- NVIDIA Broadcast
- AV1 Encoding
- AI Video Enhancement
- AI Image Generation
- Blender Acceleration
- Adobe Creative Cloud GPU Acceleration
- DaVinci Resolve GPU Rendering
ASUS Exclusive Technologies
- Auto-Extreme Technology
- GPU Tweak III
- Aura Sync RGB Support
- Protective Metal Backplate
- Stainless Steel I/O Bracket
- ASUS Reliability Testing
Power Requirements
| Item | Requirement |
|---|---|
| Recommended PSU | 550W |
| Power Connector | 1 × 16-pin PCIe |
Package Contents
The retail package typically includes:
- ASUS PRIME GeForce RTX™ 5060 Ti 16GB GDDR7 OC Edition Graphics Card
- Speed Setup Guide
- Graphics Card Support Bracket (region/package dependent)
- Adapter Cable (if included by region)
- Warranty Information
