ASUS PRIME GeForce RTX 5060 8GB GDDR7 OC Edition Graphics Card | NVIDIA Blackwell | DLSS 4 | PCIe 5.0
Description
The ASUS PRIME GeForce RTX™ 5060 8GB GDDR7 OC Edition is a factory-overclocked, triple-fan RTX 5060 designed around NVIDIA Blackwell architecture. The exact model is PRIME-RTX5060-O8G. ASUS positions it as an SFF-Ready 2.5-slot card with Axial-tech cooling and broad compatibility.
| Specification | Details |
|---|---|
| Model | PRIME-RTX5060-O8G |
| GPU | NVIDIA GeForce RTX™ 5060 |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 3,840 |
| Video Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| PCI Express | PCI Express 5.0 |
| OC Mode Clock | 2595 MHz |
| Default Boost Clock | 2565 MHz |
| OpenGL | 4.6 |
| Maximum Resolution | 7680 × 4320 |
| DisplayPort | 3 × DisplayPort 2.1b |
| HDMI | 1 × HDMI 2.1b |
| HDCP | 2.3 |
| Maximum Displays | 4 |
| Recommended PSU | 550W |
| Power Connector | 1 × 8-pin |
| Slot Design | 2.5-slot |
| Dimensions | 268.3 × 120 × 50 mm |
ASUS lists 8GB GDDR7 memory running at 28 Gbps on a 128-bit interface, with a 2565 MHz default boost clock and 2595 MHz OC mode.
For connectivity, it provides 3 × DisplayPort 2.1b + 1 × HDMI 2.1b, supports up to four displays, and a maximum digital resolution of 7680 × 4320 (8K). It uses a single 8-pin power connector and ASUS recommends a 550W PSU.

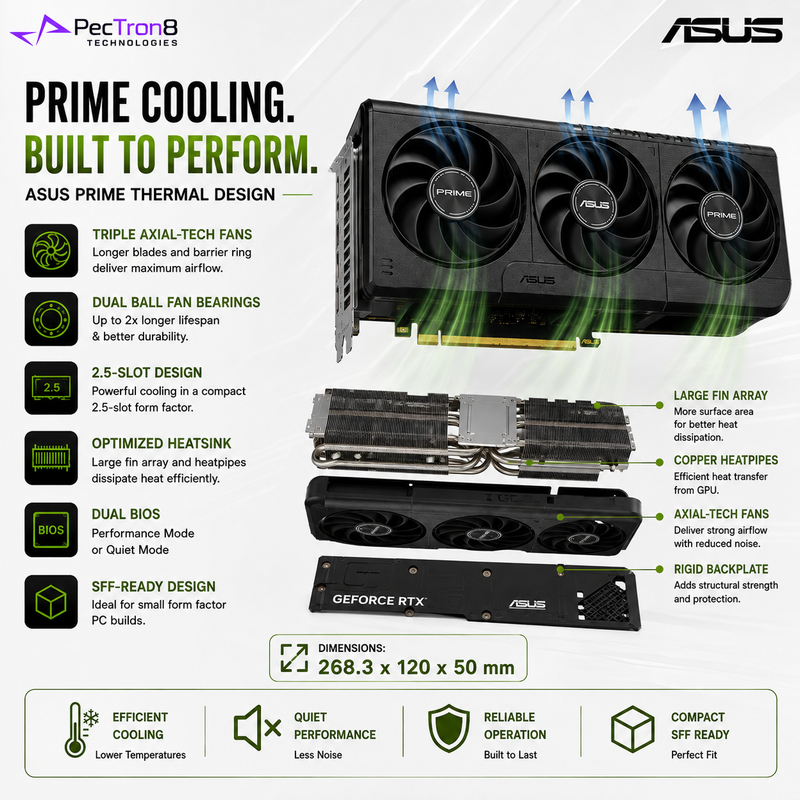

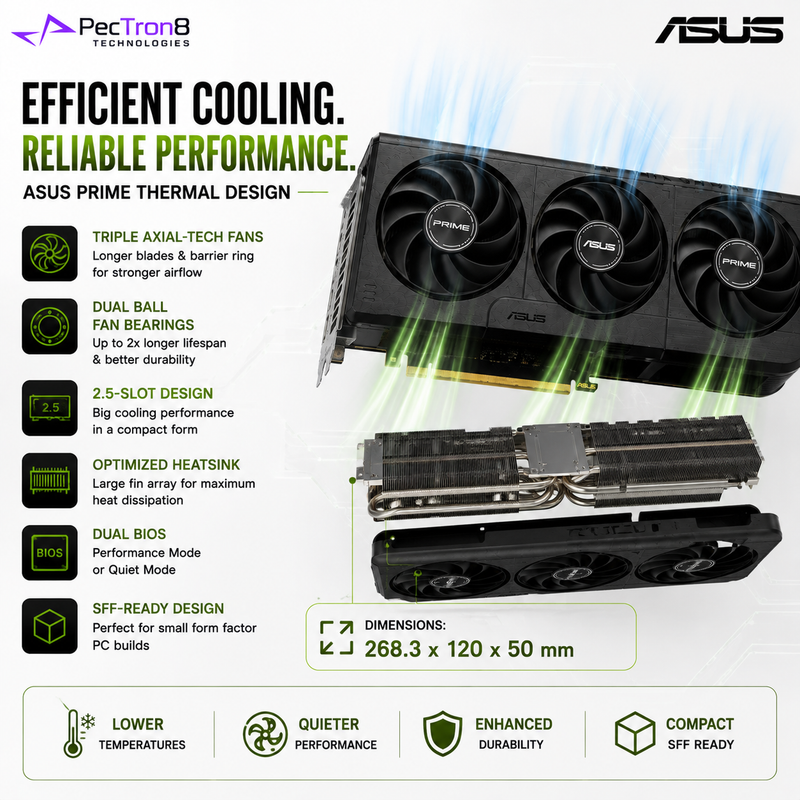

The PRIME cooling system includes triple Axial-tech fans, dual-ball fan bearings, a 2.5-slot SFF-ready design, and Dual BIOS with Performance and Quiet modes.
Key Selling Features
- NVIDIA Blackwell Architecture
- Factory Overclocked OC Edition
- 8GB GDDR7
- 28 Gbps memory speed
- 3,840 CUDA cores
- DLSS 4
- Multi Frame Generation
- 4th Gen Ray Tracing Cores
- 5th Gen Tensor Cores
- NVIDIA Reflex 2
- PCI Express 5.0
- Triple Axial-tech Fan Cooling
- Dual-Ball Fan Bearings
- Dual BIOS
- SFF-Ready 2.5-slot design
- 3 × DisplayPort 2.1b
- 1 × HDMI 2.1b
- Up to 4 displays
- Up to 8K output
Package Contents
ASUS officially lists:
- ASUS PRIME GeForce RTX™ 5060 8GB GDDR7 OC Edition
- Speed Setup Manual
- Thank You Card
Supported Software
- ASUS GPU Tweak III
- MuseTree
- GeForce Game Ready Driver
- NVIDIA Studio Driver
