ASUS PRIME GeForce RTX 5060 8GB GDDR7 OC Edition Graphics Card | NVIDIA Blackwell | DLSS 4 | PCIe 5.0
Description

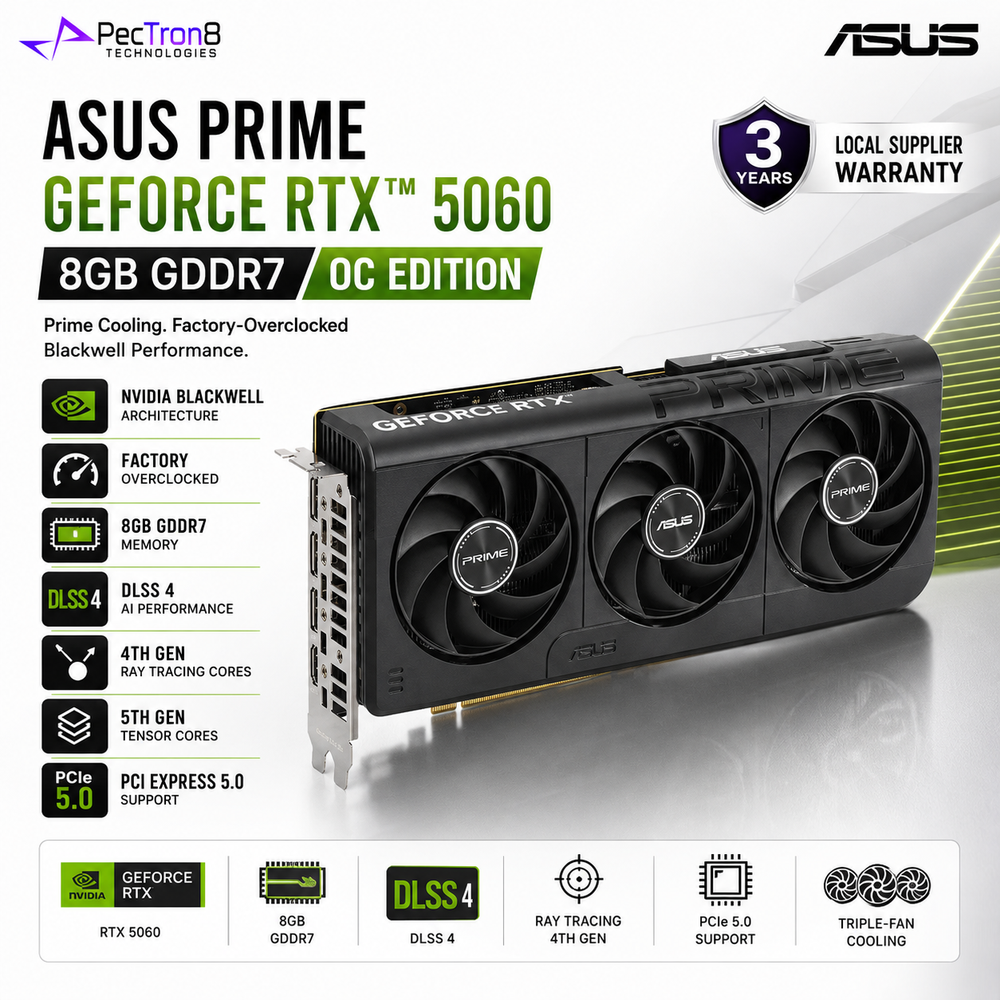

The ASUS PRIME GeForce RTX™ 5060 8GB GDDR7 OC Edition is a factory-overclocked, triple-fan graphics card based on the NVIDIA Blackwell architecture. It combines 3,840 CUDA cores, 8GB GDDR7 memory, PCIe 5.0, DLSS 4 support, and a compact 2.5-slot PRIME cooling design. The exact model is PRIME-RTX5060-O8G.

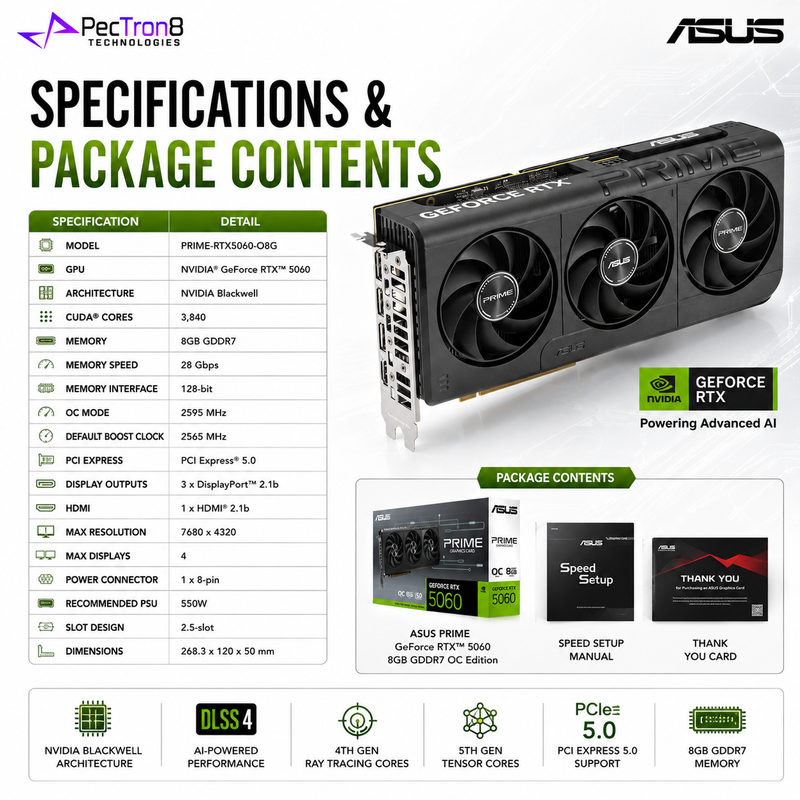

| Specification | Details |
|---|---|
| Model | PRIME-RTX5060-O8G |
| GPU | NVIDIA GeForce RTX™ 5060 |
| Architecture | NVIDIA Blackwell |
| AI Performance | 614 TOPS |
| CUDA Cores | 3,840 |
| Video Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| PCI Express | PCIe 5.0 |
| OC Mode Clock | 2595 MHz |
| Default Boost Clock | 2565 MHz |
| OpenGL | 4.6 |
| Maximum Resolution | 7680 × 4320 |
| DisplayPort | 3 × DisplayPort 2.1b |
| HDMI | 1 × HDMI 2.1b |
| HDCP | 2.3 |
| Maximum Displays | 4 |
| Power Connector | 1 × 8-pin |
| Recommended PSU | 550W |
| Slot Size | 2.5-slot |
| Dimensions | 268.3 × 120 × 50 mm |
ASUS lists the card at 2595 MHz in OC mode and 2565 MHz default boost, with 8GB GDDR7 memory running at 28 Gbps over a 128-bit interface.

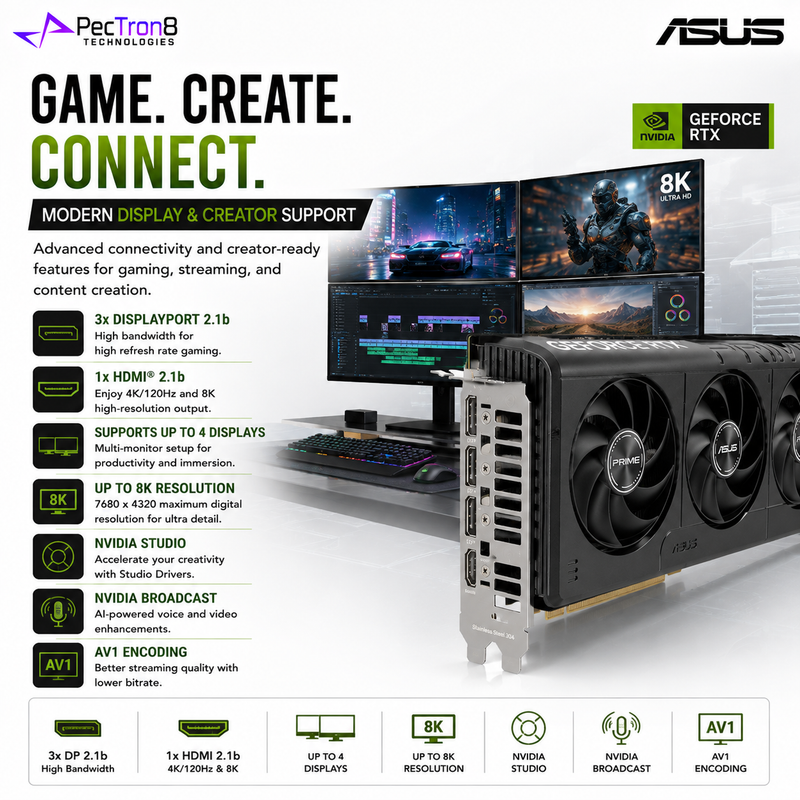

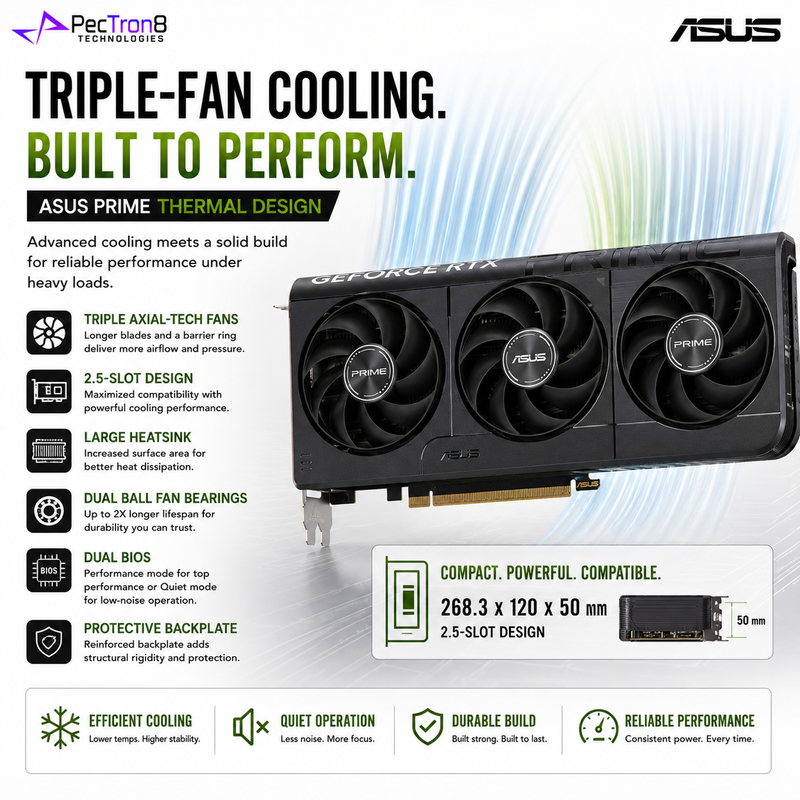

For connectivity, it provides 3 × DisplayPort 2.1b and 1 × HDMI 2.1b, supports up to four displays, and a maximum digital resolution of 7680 × 4320 (8K). The card measures 268.3 × 120 × 50 mm, occupies 2.5 slots, uses a single 8-pin power connector, and ASUS recommends a 550W PSU. ASUS also highlights the PRIME model’s triple-fan Axial-tech cooling, dual-ball fan bearings, dual BIOS, and SFF-ready 2.5-slot design.
Official package accessories listed by ASUS are 1 × Speed Setup Manual and 1 × Thank You Card. Supported software includes ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, and NVIDIA Studio Driver.
