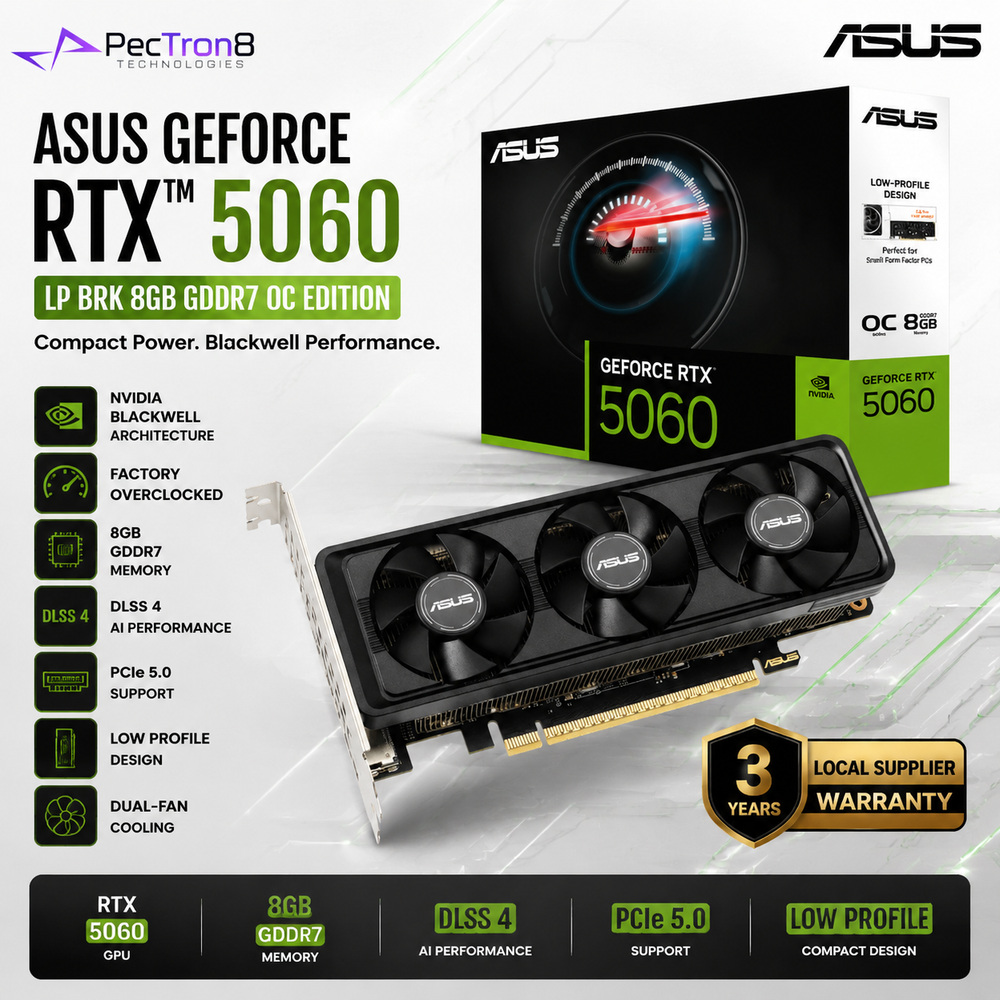

ASUS GeForce RTX™ 5060 LP BRK 8GB GDDR7 OC Edition Graphics Card | NVIDIA Blackwell | DLSS 4 | Low Profile GPU
SKU: RTX™ 5060 LP BRK 8GB GDDR7
$792.00
$799.00
Free shipping
Estimated delivery: 3-5 business days
Description
The ASUS GeForce RTX™ 5060 LP BRK 8GB GDDR7 OC Edition is a compact low-profile graphics card designed for small-form-factor (SFF) PCs, HTPC builds, and compact workstations. It is powered by the NVIDIA Blackwell architecture, featuring 3,840 CUDA cores, 8GB GDDR7 memory, PCI Express 5.0, and a dual-fan low-profile cooling solution.
| Specification | Details |
|---|---|
| Model | RTX5060-O8G-LP-BRK |
| GPU | NVIDIA GeForce RTX™ 5060 |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 3,840 |
| AI Performance | 614 TOPS |
| Video Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| PCI Express | PCIe 5.0 |
| OC Mode Clock | 2527 MHz |
| Default Boost Clock | 2497 MHz |
| OpenGL | 4.6 |
| Maximum Resolution | 7680 × 4320 |
| DisplayPort | 3 × DisplayPort 2.1b |
| HDMI | 1 × HDMI 2.1b |
| HDCP | 2.3 |
| Maximum Displays | 4 |
| Power Connector | 1 × 8-pin |
| Recommended PSU | 550W |
| Slot Design | Low Profile / 2-slot |
| Dimensions | Approx. 182 × 69 × 40 mm |
Key Features

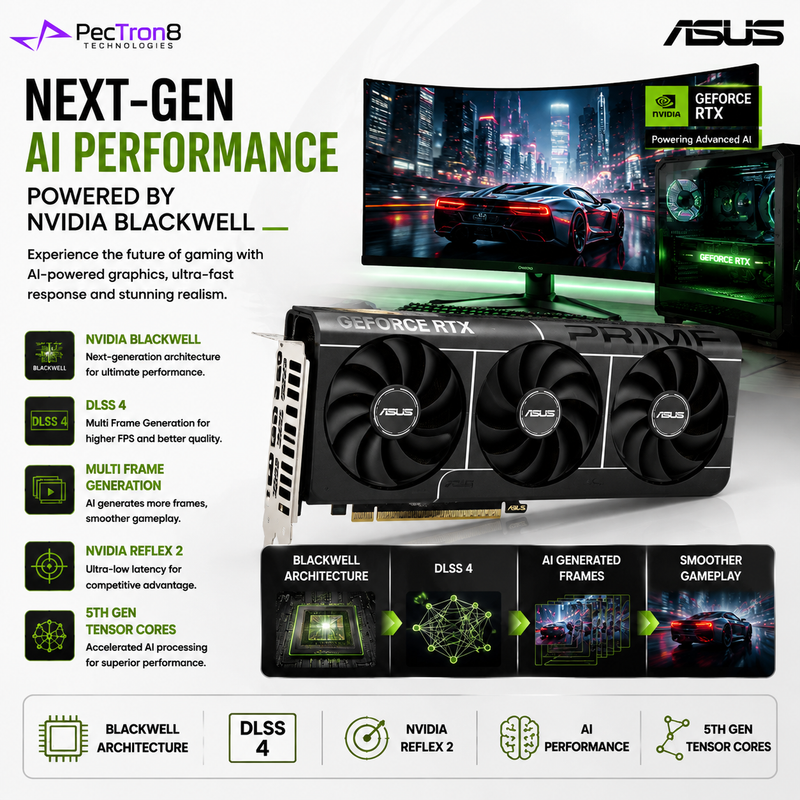

NVIDIA Blackwell Architecture
- Next-generation GPU architecture
- Improved AI processing capability
- Enhanced gaming and creative performance

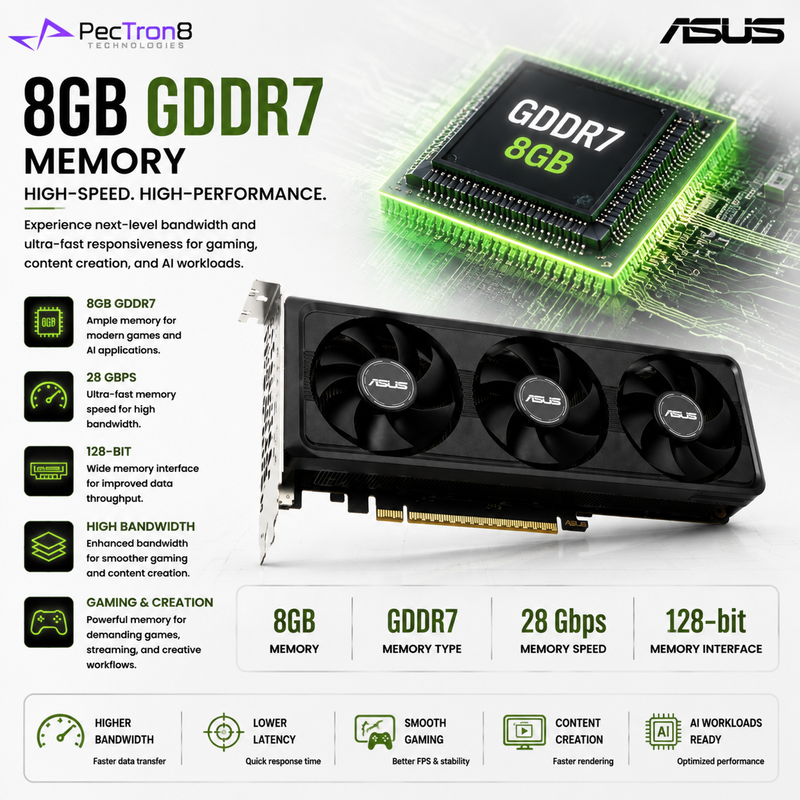

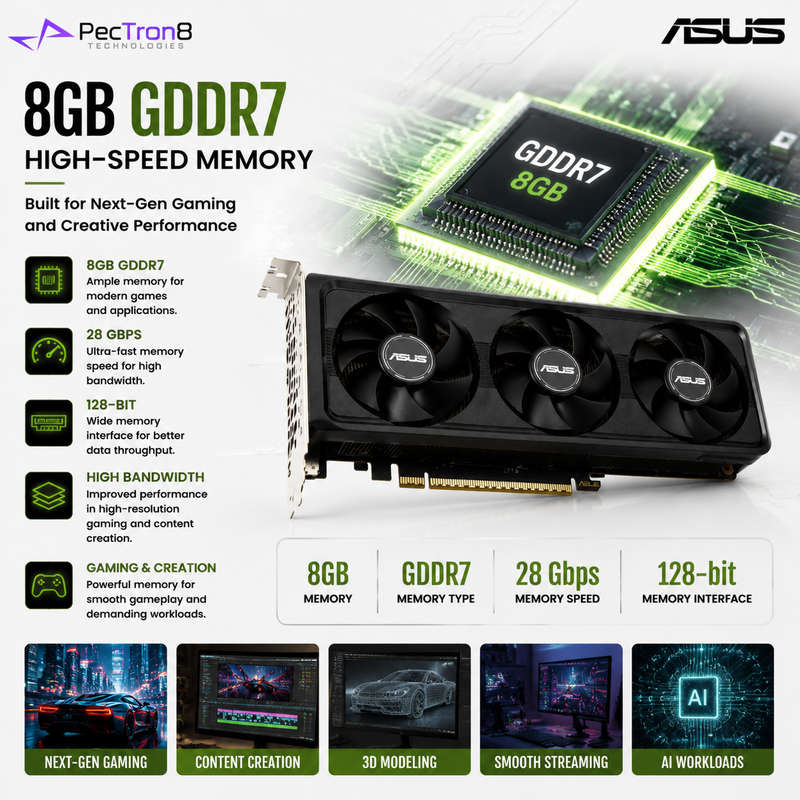

8GB GDDR7 Memory
- 8GB high-speed graphics memory
- 28 Gbps memory speed
- 128-bit memory interface
- Designed for modern gaming and AI workloads
DLSS 4 Technology
- AI-powered upscaling
- Multi Frame Generation support
- Improved frame rates and image quality

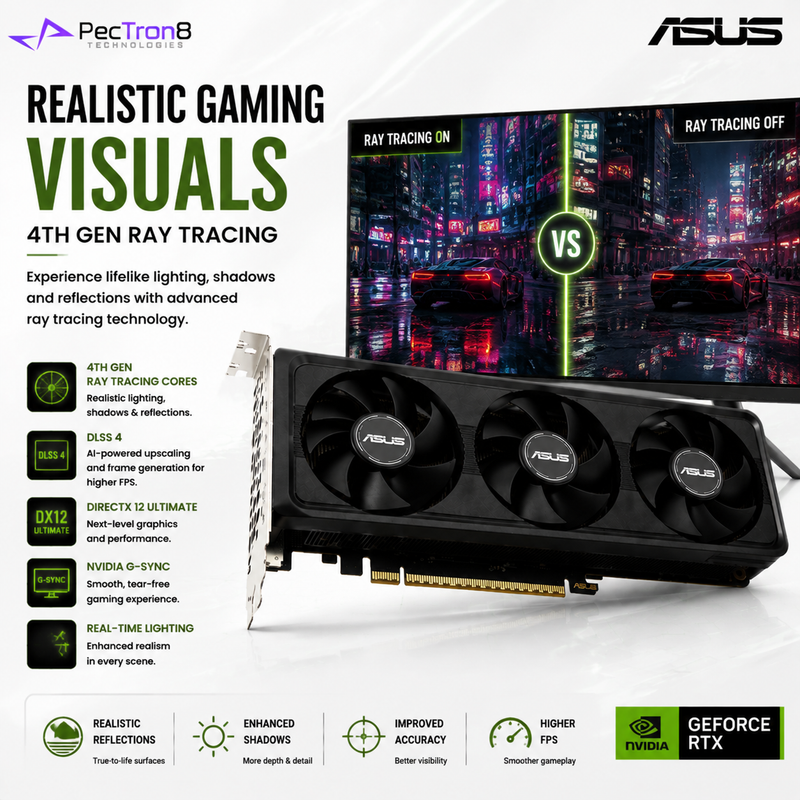

Advanced Ray Tracing
- 4th Gen Ray Tracing Cores
- Realistic lighting, shadows, and reflections
- Enhanced visual quality in supported games

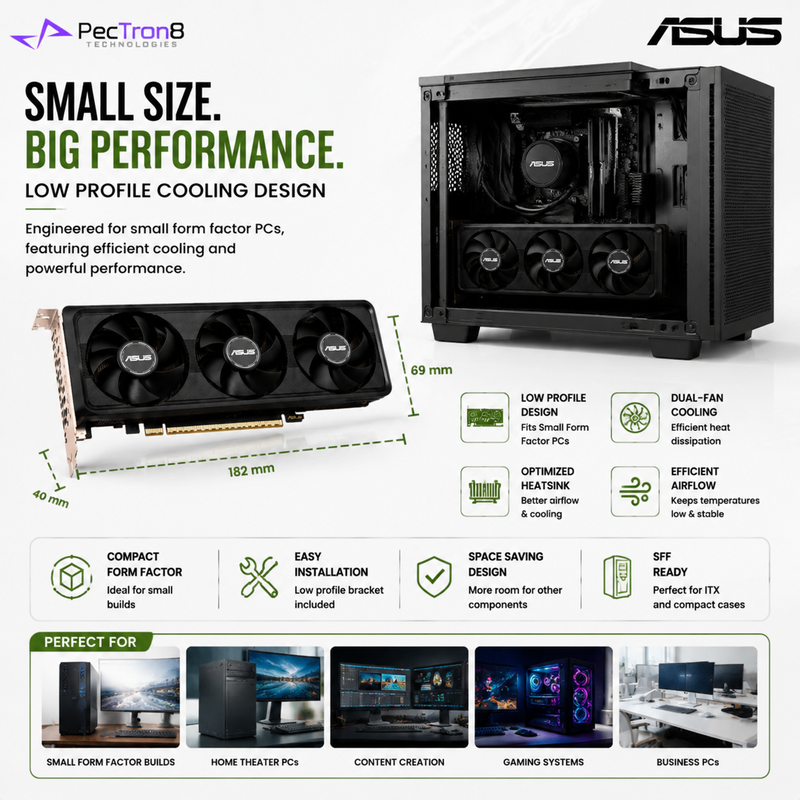

Low Profile Compact Design
- Designed for small-form-factor PCs
- Space-saving graphics solution
- Suitable for compact gaming and workstation builds
Cooling Design
- Dual-fan low-profile cooling system
- Optimized heatsink design
- Compact thermal solution for efficient operation

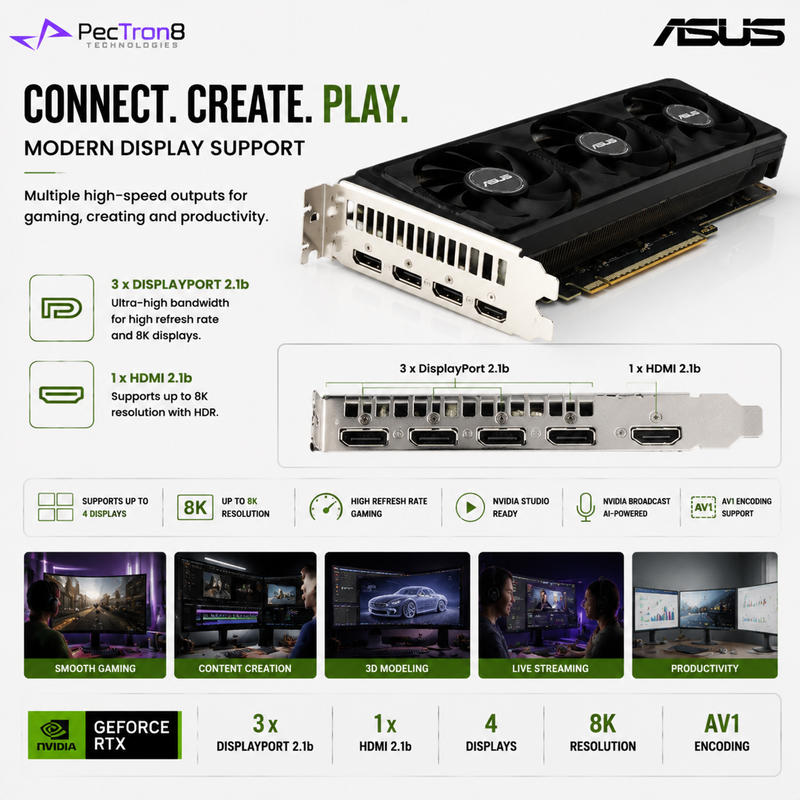

Connectivity
| Port | Quantity |
|---|---|
| DisplayPort 2.1b | 3 |
| HDMI 2.1b | 1 |
Supported:
- Up to 4 displays
- Up to 8K resolution (7680 × 4320)
- High refresh rate gaming displays
Power Requirements
| Item | Details |
|---|---|
| Recommended PSU | 550W |
| Power Connector | 1 × 8-pin |
| Interface | PCI Express 5.0 |
Software Support
- ASUS GPU Tweak III
- GeForce Game Ready Driver
- NVIDIA Studio Driver
- MuseTree
Package Contents
- ASUS GeForce RTX™ 5060 LP BRK 8GB GDDR7 OC Edition Graphics Card
- Low-profile bracket
- Setup documentation
Product Highlights
- NVIDIA GeForce RTX™ 5060
- NVIDIA Blackwell Architecture
- 8GB GDDR7 Memory
- Factory Overclocked
- DLSS 4
- Ray Tracing
- PCIe 5.0
- Low-profile Design
- Compact Dual-Fan Cooling
- Up to 4 Displays
- Up to 8K Output
