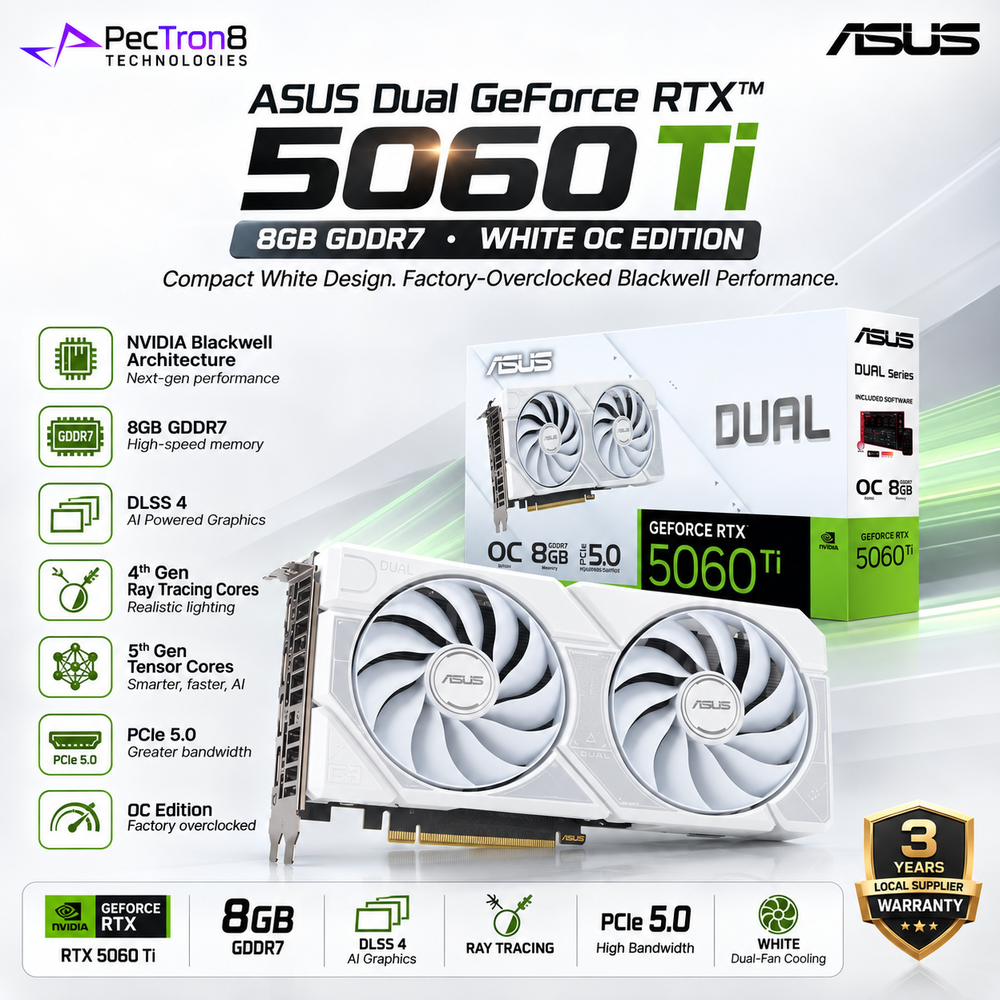

ASUS Dual GeForce RTX 5060 Ti 8GB GDDR7 White OC Edition Graphics Card | Blackwell | DLSS 4 | PCIe 5.0
Description
The ASUS Dual GeForce RTX™ 5060 Ti 8GB GDDR7 White OC Edition is a compact factory-overclocked graphics card based on NVIDIA Blackwell architecture. It combines 4,608 CUDA cores, 8GB GDDR7 memory, PCIe 5.0, and a white 2.5-slot dual-fan cooler for gaming, AI-enhanced graphics, and creator workloads. The exact ASUS model is DUAL-RTX5060TI-O8G-WHITE.

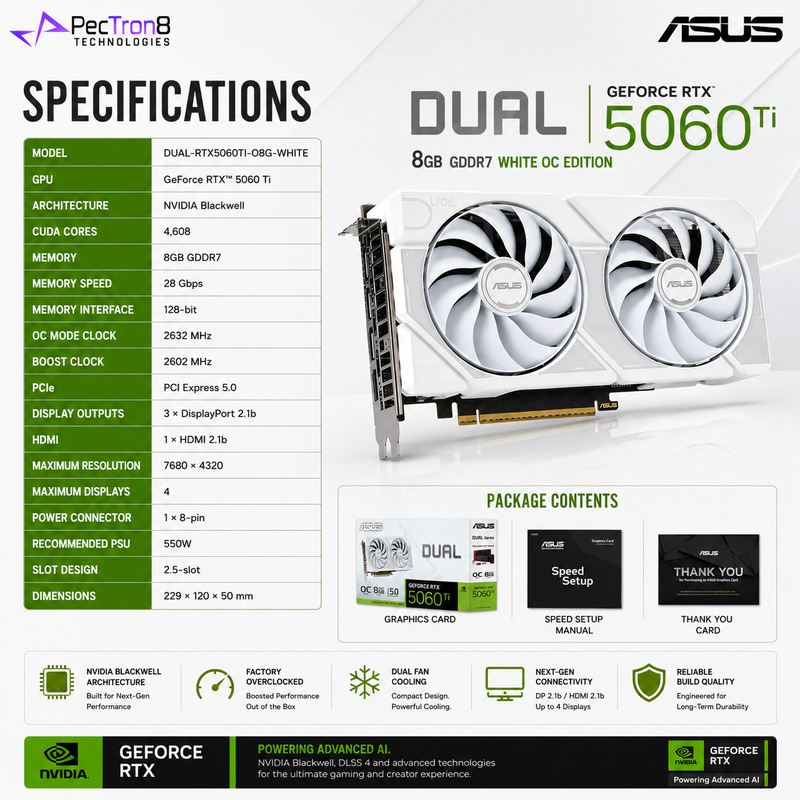

| Specification | Details |
|---|---|
| Model | DUAL-RTX5060TI-O8G-WHITE |
| GPU | NVIDIA GeForce RTX™ 5060 Ti |
| Architecture | NVIDIA Blackwell |
| AI Performance | 759 TOPS |
| CUDA Cores | 4,608 |
| Video Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| PCI Express | PCIe 5.0 |
| OC Mode Clock | 2632 MHz |
| Default Boost Clock | 2602 MHz |
| OpenGL | 4.6 |
| Maximum Resolution | 7680 × 4320 |
| DisplayPort | 3 × DisplayPort 2.1b |
| HDMI | 1 × HDMI 2.1b |
| HDCP | 2.3 |
| Maximum Displays | 4 |
| Power Connector | 1 × 8-pin |
| Recommended PSU | 550W |
| Slot Size | 2.5-slot |
| Dimensions | 229 × 120 × 50 mm |
These values are from ASUS’s official specifications for the White OC model.
The 8GB GDDR7 memory operates at 28 Gbps over a 128-bit memory interface, while the GPU runs at 2602 MHz boost clock by default and up to 2632 MHz in OC mode.
For connectivity, the card provides 3 × DisplayPort 2.1b and 1 × HDMI 2.1b, supports up to four displays, and reaches a maximum digital resolution of 7680 × 4320 (8K).

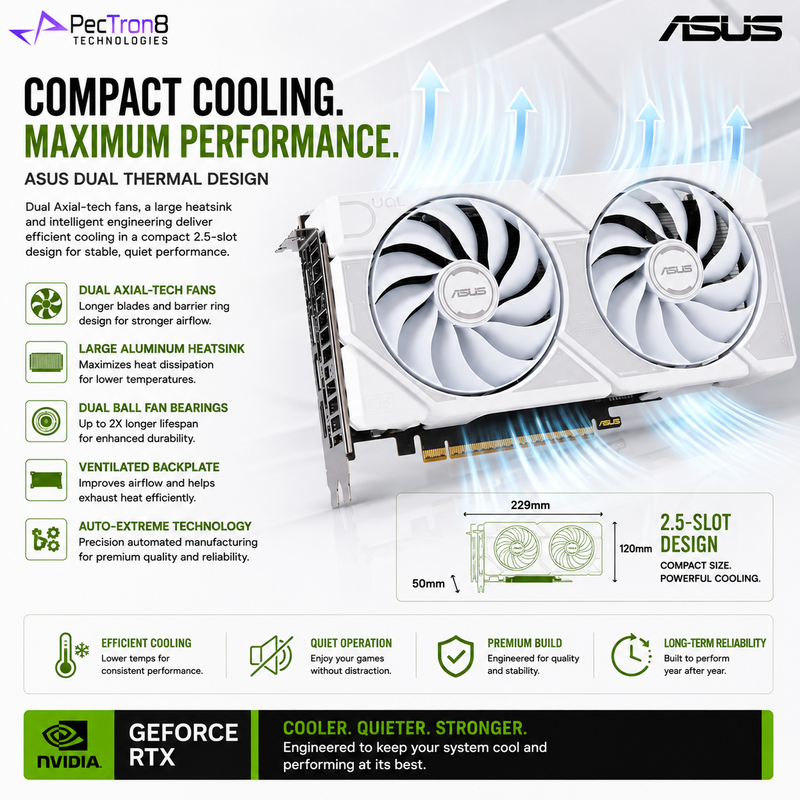

Its compact chassis measures 229 × 120 × 50 mm and occupies 2.5 slots. ASUS recommends a 550W PSU, and power is supplied through a single 8-pin PCIe connector.
Official accessories listed by ASUS are 1 × Speed Setup Manual and 1 × Thank You Card. Supported software includes ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, and NVIDIA Studio Driver.
