ASUS Dual GeForce RTX 5060 Ti 8GB GDDR7 OC Edition Graphics Card | NVIDIA Blackwell | DLSS 4 | PCIe 5.0
Description
The ASUS Dual GeForce RTX™ 5060 Ti 8GB GDDR7 OC Edition is the black dual-fan version, model DUAL-RTX5060TI-O8G. It uses the NVIDIA GeForce RTX™ 5060 Ti GPU with 4,608 CUDA cores, 8GB GDDR7, PCIe 5.0, and a compact 2.5-slot cooling design.

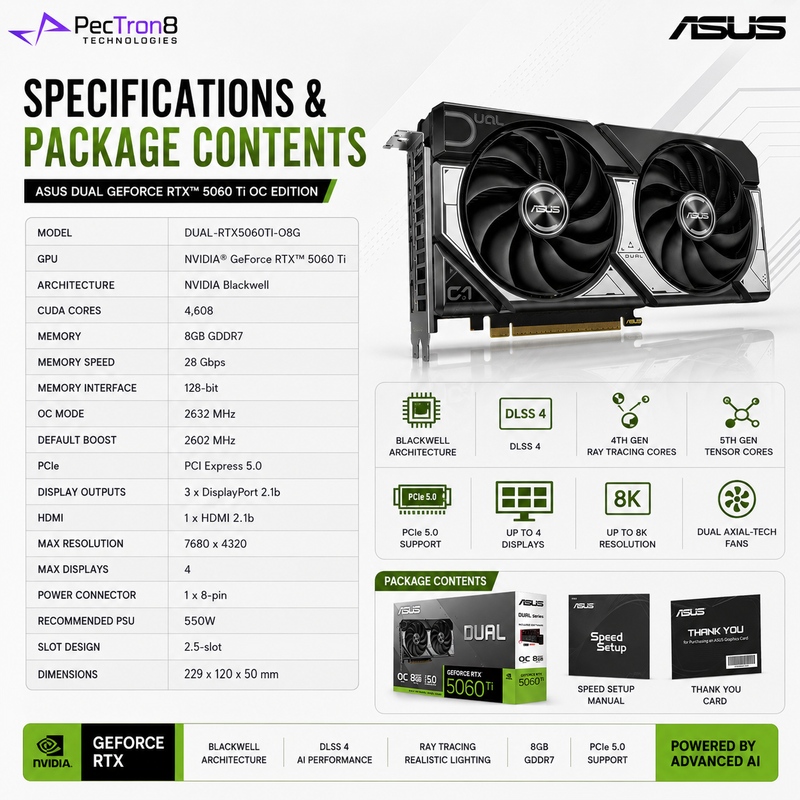

| Specification | Details |
|---|---|
| Model | DUAL-RTX5060TI-O8G |
| GPU | NVIDIA GeForce RTX™ 5060 Ti |
| Architecture | NVIDIA Blackwell |
| AI Performance | 759 TOPS |
| CUDA Cores | 4,608 |
| Video Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| PCI Express | PCIe 5.0 |
| OC Mode Clock | 2632 MHz |
| Default Boost Clock | 2602 MHz |
| OpenGL | 4.6 |
| Maximum Resolution | 7680 × 4320 |
| DisplayPort | 3 × DisplayPort 2.1b |
| HDMI | 1 × HDMI 2.1b |
| HDCP | 2.3 |
| Maximum Displays | 4 |
| Power Connector | 1 × 8-pin |
| Recommended PSU | 550W |
| Slot Design | 2.5-slot |
| Dimensions | 229 × 120 × 50 mm |
ASUS lists the card at 2632 MHz in OC mode and 2602 MHz default boost, with 8GB GDDR7 running at 28 Gbps over a 128-bit interface.
For connectivity, it provides 3 × DisplayPort 2.1b and 1 × HDMI 2.1b, supports up to four displays, and has a maximum digital resolution of 7680 × 4320 (8K).
The card measures 229 × 120 × 50 mm, occupies 2.5 slots, requires 1 × 8-pin PCIe power connector, and ASUS recommends a 550W PSU.
Key Selling Features
- NVIDIA Blackwell Architecture
- Factory Overclocked
- 8GB GDDR7
- 28 Gbps memory speed
- 4,608 CUDA cores
- DLSS 4
- Multi Frame Generation
- 4th Gen Ray Tracing Cores
- 5th Gen Tensor Cores
- NVIDIA Reflex 2
- PCI Express 5.0
- Dual Axial-tech Fans
- Dual-Ball Fan Bearings
- Vented Backplate
- Compact 2.5-slot design
- 3 × DisplayPort 2.1b
- 1 × HDMI 2.1b
- Up to 4 displays
- Up to 8K output
ASUS specifically promotes the card’s two Axial-tech fans, vented backplate, and compact 2.5-slot design for broader compatibility, including small-form-factor builds.
Package Contents
ASUS officially lists:
- ASUS Dual GeForce RTX™ 5060 Ti 8GB GDDR7 OC Edition
- Speed Setup Manual
- Thank You Card
Supported Software
- ASUS GPU Tweak III
- MuseTree
- GeForce Game Ready Driver
- NVIDIA Studio Driver
