ASUS Dual GeForce RTX 5060 Ti 8GB GDDR7 Graphics Card | NVIDIA Blackwell | DLSS 4 | PCIe 5.0
Description
The ASUS Dual GeForce RTX™ 5060 Ti 8GB GDDR7 is the standard, non-OC version of ASUS’s compact dual-fan RTX 5060 Ti. The exact model is DUAL-RTX5060TI-8G. It uses NVIDIA Blackwell architecture, 4,608 CUDA cores, 8GB GDDR7 memory, PCI Express 5.0, and a compact 2.5-slot design.

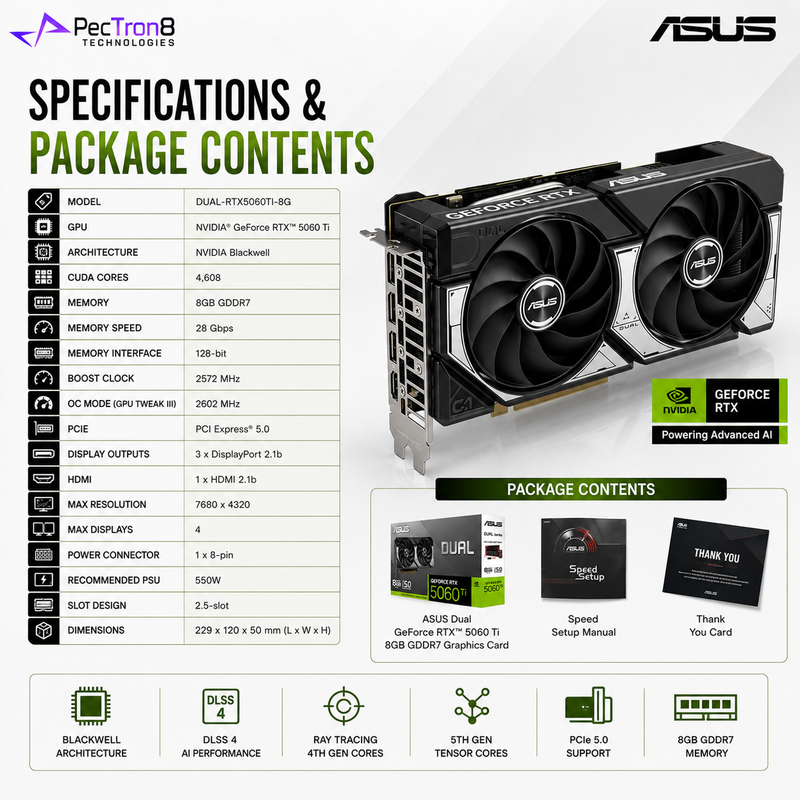

| Specification | Details |
|---|---|
| Model | DUAL-RTX5060TI-8G |
| GPU | NVIDIA GeForce RTX™ 5060 Ti |
| Architecture | NVIDIA Blackwell |
| AI Performance | 759 TOPS |
| CUDA Cores | 4,608 |
| Video Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| PCI Express | PCI Express 5.0 |
| Default Boost Clock | 2572 MHz |
| OC Mode via GPU Tweak III | 2602 MHz |
| OpenGL | 4.6 |
| Maximum Resolution | 7680 × 4320 |
| DisplayPort | 3 × DisplayPort 2.1b |
| HDMI | 1 × HDMI 2.1b |
| HDCP | 2.3 |
| Maximum Displays | 4 |
| Power Connector | 1 × 8-pin |
| Recommended PSU | 550W |
| Slot Design | 2.5-slot |
| Dimensions | 229 × 120 × 50 mm |
ASUS specifies the 8GB GDDR7 memory at 28 Gbps on a 128-bit interface, with a 2572 MHz default boost clock and 2602 MHz OC mode through GPU Tweak III.
For connectivity, it includes 3 × DisplayPort 2.1b + 1 × HDMI 2.1b, supports up to four displays, and reaches a maximum digital resolution of 7680 × 4320 (8K).
Key selling features include DLSS 4, Multi Frame Generation, 4th Gen Ray Tracing Cores, 5th Gen Tensor Cores, NVIDIA Reflex 2, PCIe 5.0, dual-fan cooling, and NVIDIA Studio support.
Package Contents
- ASUS Dual GeForce RTX™ 5060 Ti 8GB GDDR7 Graphics Card
- Speed Setup Manual
- Thank You Card
Supported Software
- ASUS GPU Tweak III
- MuseTree
- GeForce Game Ready Driver
- NVIDIA Studio Driver
