ASUS Dual GeForce RTX 5060 Ti 16GB GDDR7 OC Edition Graphics Card | Blackwell | DLSS 4 | PCIe 5.0 | DP 2.1b
Description
The ASUS Dual GeForce RTX™ 5060 Ti 16GB GDDR7 OC Edition is a compact factory-overclocked graphics card based on NVIDIA’s Blackwell architecture. It combines 16GB GDDR7 memory, 4,608 CUDA cores, PCIe 5.0, and a 2.5-slot dual-fan cooler for high-refresh 1080p/1440p gaming, ray tracing, AI workloads, and creator applications. ASUS lists the exact model as DUAL-RTX5060TI-O16G.

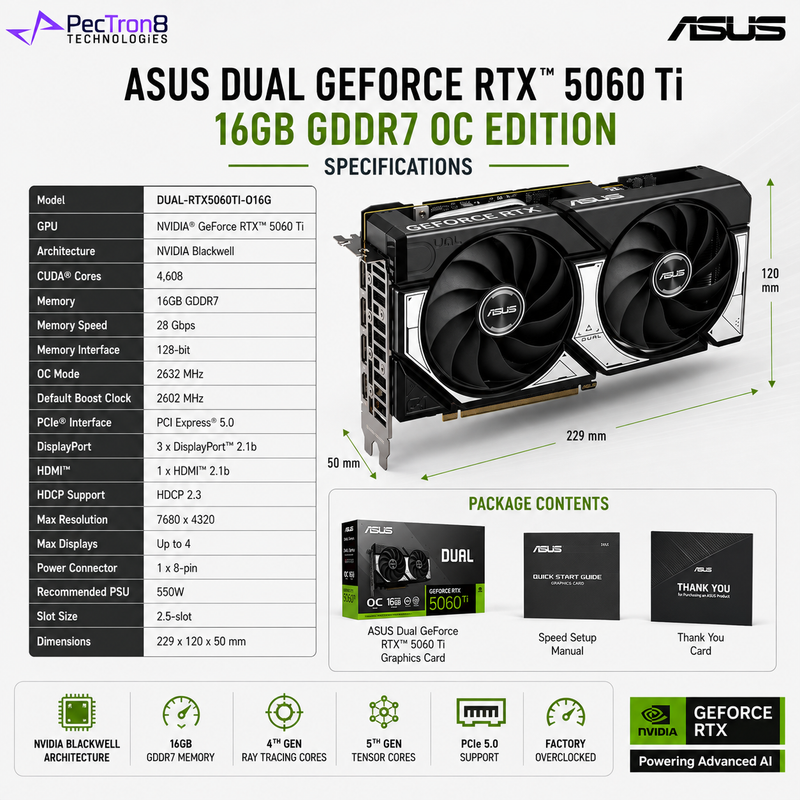

| Specification | Details |
|---|---|
| Model | DUAL-RTX5060TI-O16G |
| GPU | NVIDIA GeForce RTX™ 5060 Ti |
| Architecture | NVIDIA Blackwell |
| AI Performance | 759 TOPs |
| CUDA Cores | 4,608 |
| Video Memory | 16GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| Bus Standard | PCI Express 5.0 |
| OC Mode Clock | 2632 MHz |
| Default Boost Clock | 2602 MHz |
| OpenGL | 4.6 |
| Max Resolution | 7680 × 4320 |
| HDMI | 1 × HDMI 2.1b |
| DisplayPort | 3 × DisplayPort 2.1b |
| HDCP | 2.3 |
| Max Displays | 4 |
| Power Connector | 1 × 8-pin |
| Recommended PSU | 550W |
| Slot Size | 2.5-slot |
| Dimensions | 229 × 120 × 50 mm |
The OC Edition runs at 2632 MHz in OC mode, with a 2602 MHz default boost clock. Its 16GB GDDR7 memory operates at 28 Gbps over a 128-bit interface, making memory capacity a strong selling point for modern games, high-resolution textures, editing, rendering, and AI-assisted workloads.
For display connectivity, the card provides 3 × DisplayPort 2.1b and 1 × HDMI 2.1b, supporting up to four displays and a maximum digital resolution of 7680 × 4320.
The card uses a compact 2.5-slot form factor measuring 229 × 120 × 50 mm, so it is considerably shorter than many triple-fan RTX 5060 Ti cards. ASUS recommends a 550W PSU, and importantly, this model uses one 8-pin PCIe power connector rather than a 16-pin connector.
